Intermediate Shaft Seal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the RH halfshaft. Refer to: Front Halfshaft RH - 2.3L EcoBoost (257kW/350PS) - MI4 .

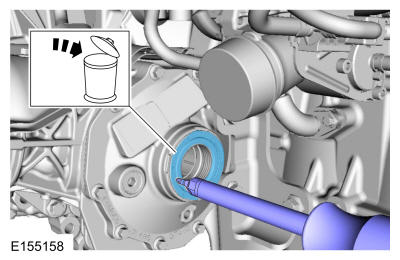

  2. Using the puller, remove and discard the intermediate shaft seal. Use the General Equipment: Puller
GFD269075Courtesy of FORD MOTOR COMPANY
