Intermediate Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: The seal is correctly installed if it is flush with the transfer case cover.

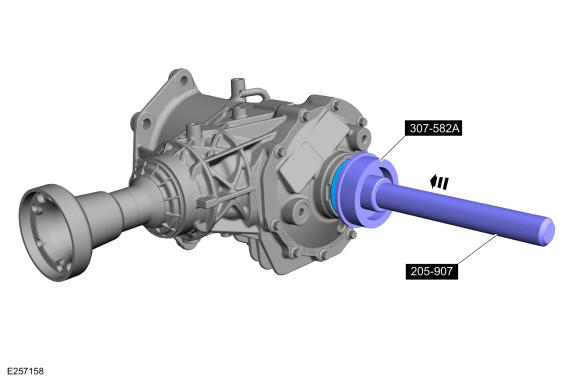

Using the special tools, install a new intermediate shaft seal. Use Special Service Tool: 307-582A Cover Axle Seal Installer., 205-907 Handle, 32 Driver.

Courtesy of FORD MOTOR COMPANY
Install the RH halfshaft. Refer to: Front Halfshaft RH - 2.3L EcoBoost (257kW/350PS) - MI4 .
