Section 41 (Four-Wheel Drive Systems (Except Electric))
>>
Description And Operation
>>
Four-Wheel Drive Systems - System Operation and Component Description
>>

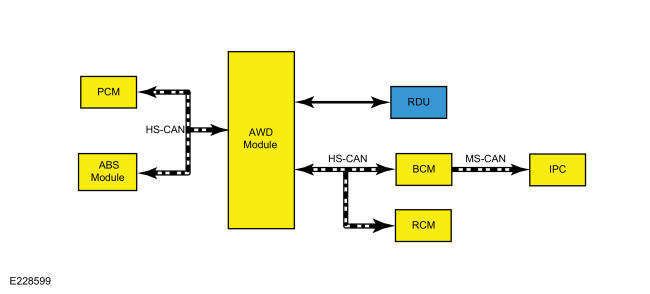

System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
HS-CAN
2
MS-CAN
3
HS-CAN
4
IPC
5
BCM
6
RCM
7
RDU
8
PCM
9
ABS Module
10
AWD Module
