Gearshift Cables - 6-Speed Manual Transmission - MMT6: Removal

WARNING: This page is about a different variant/trim than selected.

If equipped with a 2.0L EcoBoost, remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
If equipped with a 2.3L EcoBoost, remove the air cleaner. Refer to: Air Cleaner .
Disconnect the gearshift cables from the transmission.

Courtesy of FORD MOTOR COMPANY
With the vehicle in N, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

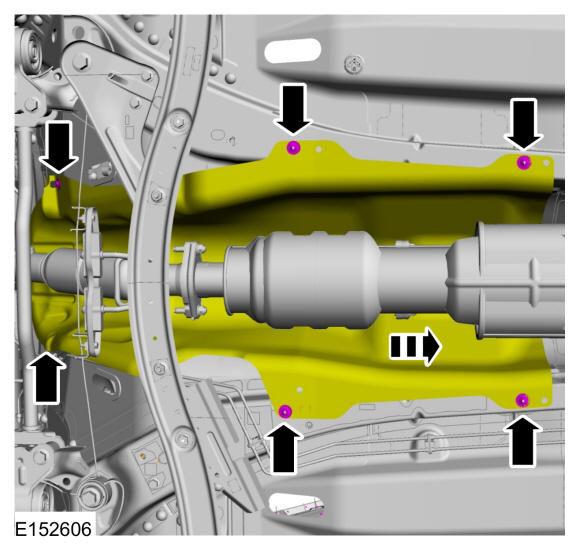

Remove the retainers and position the heat shield rearward.

Courtesy of FORD MOTOR COMPANY
Disconnect the gearshift cables from the underbody clip.

Courtesy of FORD MOTOR COMPANY

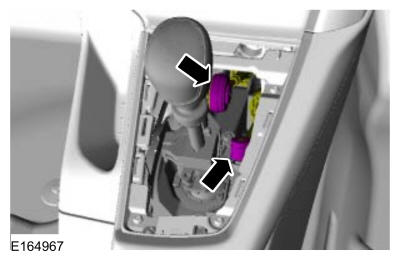

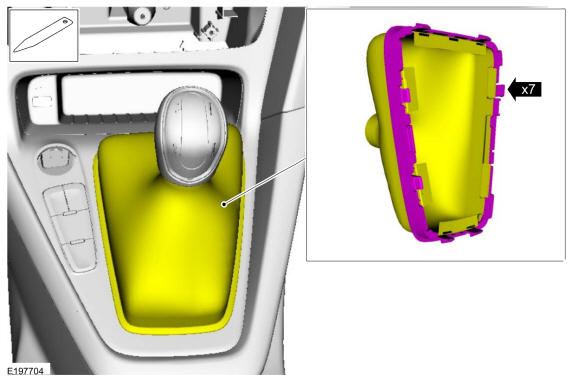

Using special tool, release the gearshift boot and position it aside. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

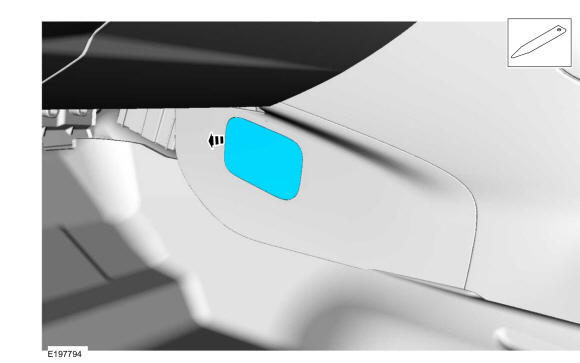

Remove the RH floor console lower trim panel retainer cover. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

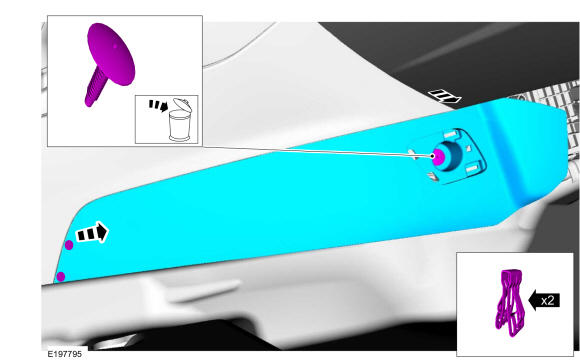

Remove and discard the pushpin, release the clips and remove the RH floor console lower trim panel.

Courtesy of FORD MOTOR COMPANY

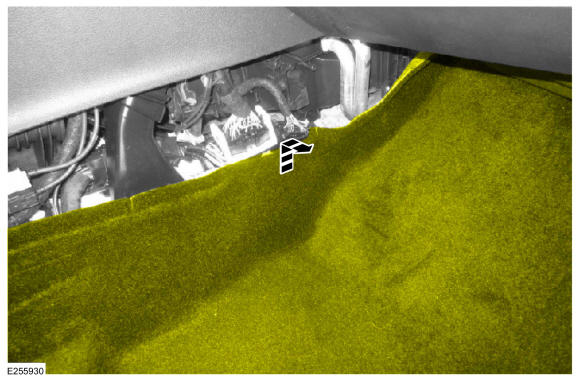

Position the carpet out of the way.

Courtesy of FORD MOTOR COMPANY

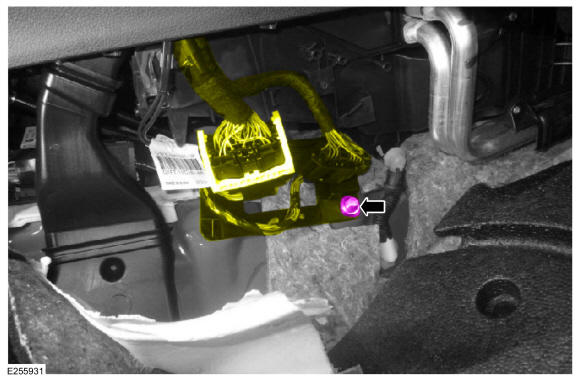

Remove the bolt and position the wiring harness retainer aside.

Courtesy of FORD MOTOR COMPANY

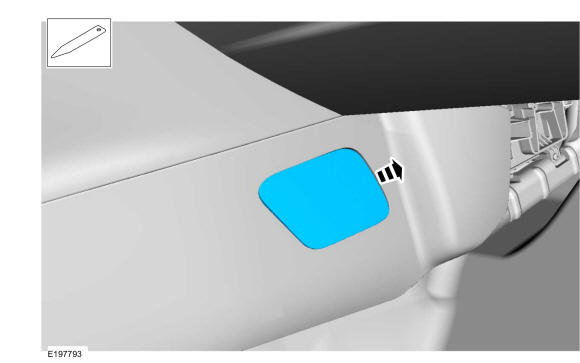

Remove the LH floor console lower trim panel retainer cover. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

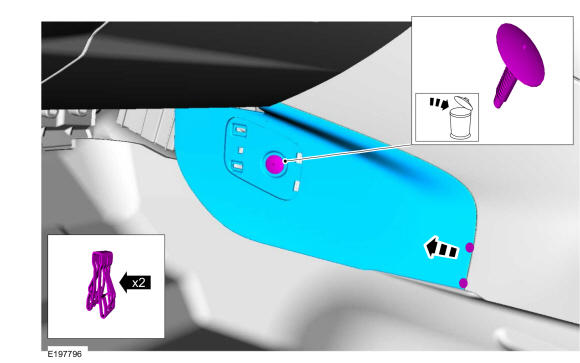

Remove and discard the pushpin, release the clips and remove the LH floor console lower trim panel.

Courtesy of FORD MOTOR COMPANY

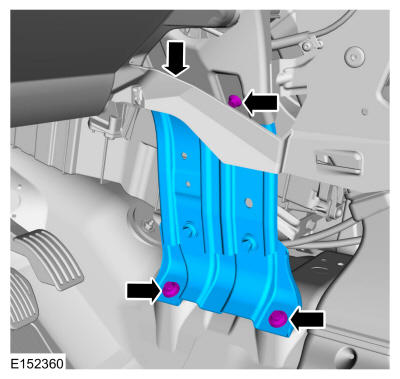

Remove the retainers and the floor console bracket.

Courtesy of FORD MOTOR COMPANY
Remove the air duct.

Courtesy of FORD MOTOR COMPANY

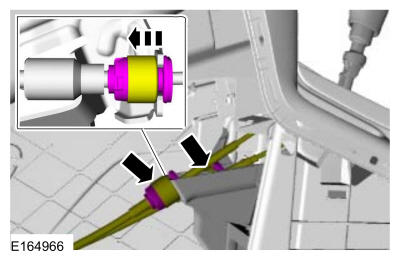

Disconnect the gearshift cables from the gearshift levers.

Courtesy of FORD MOTOR COMPANY
Disconnect the gearshift cables from the gearshift lever.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and the gearshift cables.
