Gearshift Cables - 5-Speed Manual Transmission - MTX75: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Disconnect the gearshift cables from the transmission.

Courtesy of FORD MOTOR COMPANY
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

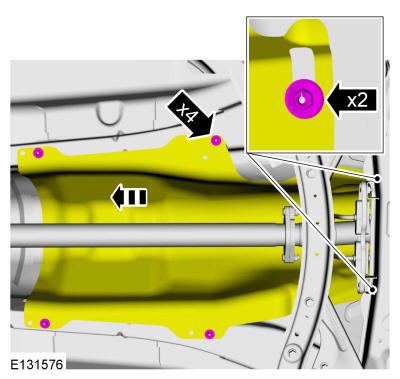

Remove the retainers and position the heat shield rearward.

Courtesy of FORD MOTOR COMPANY
Disconnect the gearshift cables from the underbody clip.

Courtesy of FORD MOTOR COMPANY
Using special tool, release the gearshift boot and position it aside. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

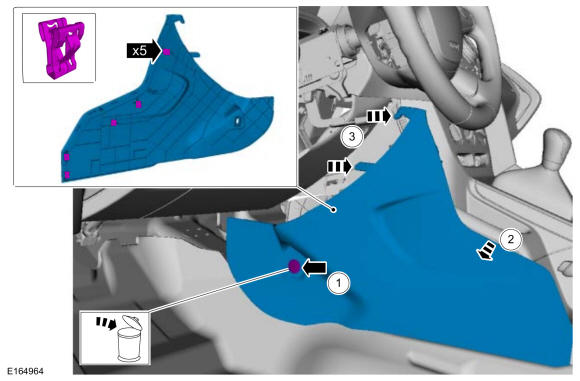

Remove the LH floor console panel and discard the pushpin retainer.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the floor console bracket.

Courtesy of FORD MOTOR COMPANY
Remove the air duct.

Courtesy of FORD MOTOR COMPANY
Disconnect the gearshift cables from the gearshift levers.

Courtesy of FORD MOTOR COMPANY
Disconnect the gearshift cables from the gearshift lever.

Courtesy of FORD MOTOR COMPANY
Remove the nuts and the gearshift cables.

Courtesy of FORD MOTOR COMPANY
