Gearshift Cables - 5-Speed Manual Transmission - MTX75: Installation

WARNING: This page is about a different variant/trim than selected.

Install the gearshift cables and nuts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

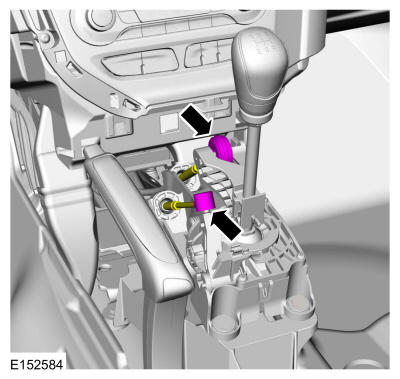

Connect the gearshift cables to the gearshift lever.

Courtesy of FORD MOTOR COMPANY

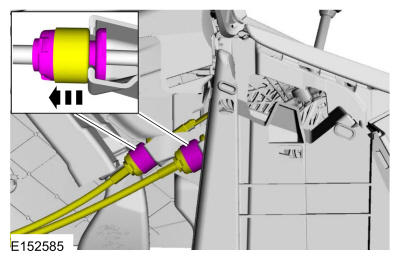

Connect the gearshift cables to the gearshift levers.

Courtesy of FORD MOTOR COMPANY

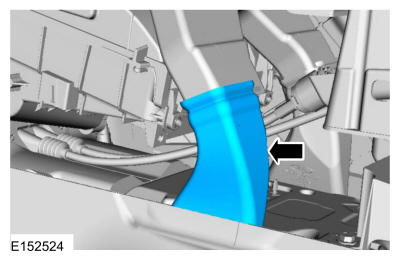

Install the air duct.

Courtesy of FORD MOTOR COMPANY

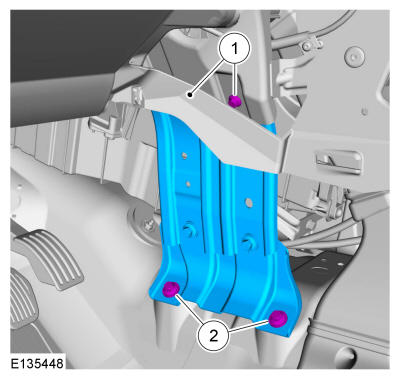

- Install the floor console bracket and retainers.
  Torque

  : 89 lb.in (10 Nm)
- Torque
  : 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

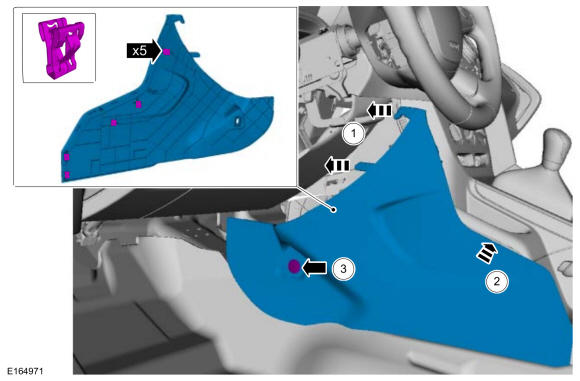

Install the LH floor console panel and a new pushpin retainer.

Courtesy of FORD MOTOR COMPANY

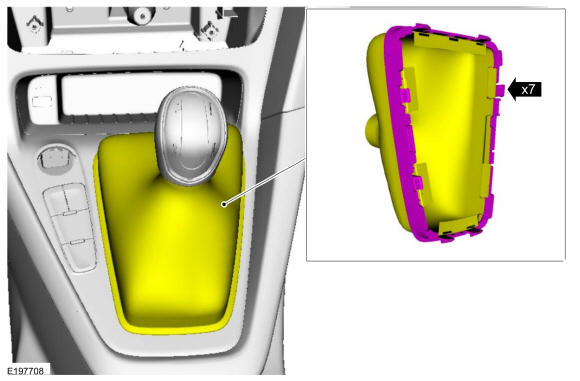

Position back the gearshift lever boot.

Courtesy of FORD MOTOR COMPANY

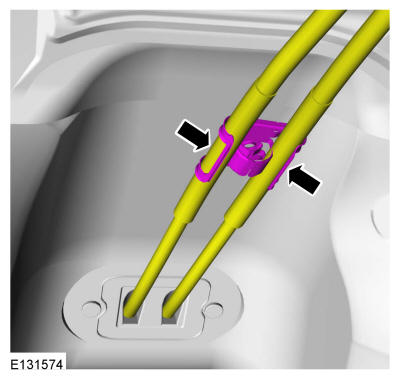

Connect the gearshift cables to the underbody clip.

Courtesy of FORD MOTOR COMPANY
Position back the heat shield and install the retainers.

Courtesy of FORD MOTOR COMPANY
Install the underbody shield and retainers.

Courtesy of FORD MOTOR COMPANY

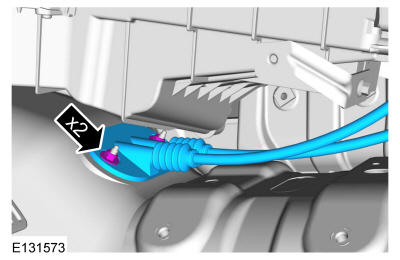

Connect the gearshift cables to the transmission.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
Adjust the gearshift cables. Refer to: Gearshift Cable Adjustment - 5-Speed Manual Transmission - MTX75 .
