Gearshift Cable Adjustment - 6-Speed Manual Transmission - B6

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Activation

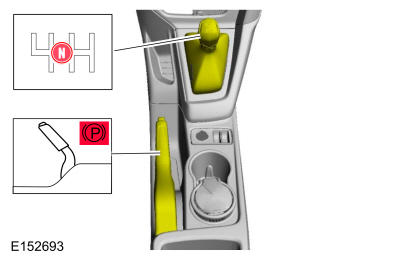

Apply the parking brake and position the gearshift lever in N.

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

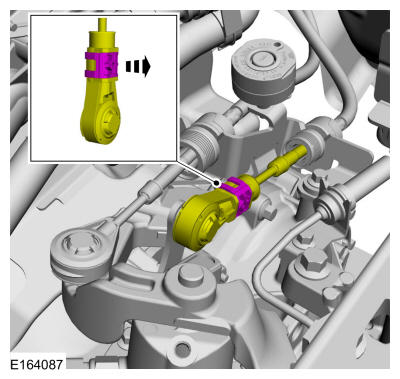

Release the lock tab on the selector cable.

Courtesy of FORD MOTOR COMPANY

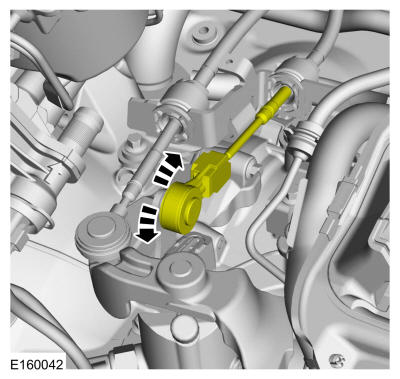

Move the selector lever back and forth to verify free motion.

Courtesy of FORD MOTOR COMPANY
NOTE: By placing the shift lever into the 4th gear position, it locks the small lever into the N position.

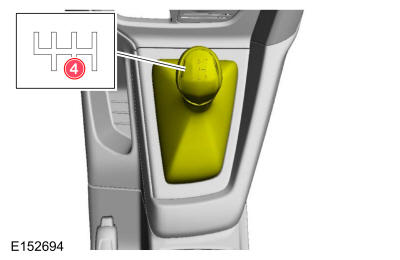

Move the gear shift lever into the 4th gear position.

Courtesy of FORD MOTOR COMPANY
Press the lock tab on the selector cable, setting the cable adjustment to the small lever.

Courtesy of FORD MOTOR COMPANY
Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
