Removal And Installation: Thermostat: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
When removing any turbocharger air intake system components, make sure to cover any open ports to prevent debris from entering the system. The turbocharger compressor vanes can be damaged by even the smallest particles. All components need to be inspected and cleaned prior to installation or reassembly.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the engine appearance cover.

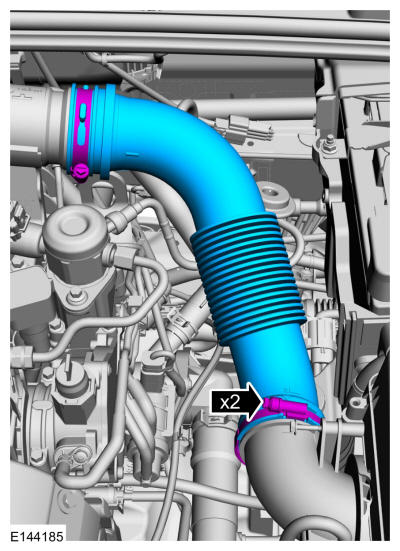

- Loosen the clamps and remove the air cleaner outlet pipe.
Torque: 36 lb.in (4.1 Nm)
-
WARNING: Be prepared to collect escaping fluid.

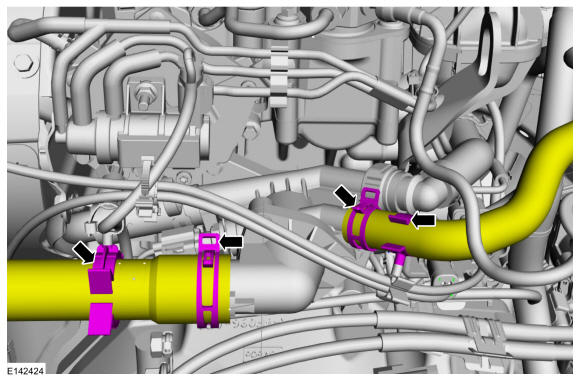

Remove the wiring harness retainers. Release the hose clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
-
WARNING: Be prepared to collect escaping fluid.

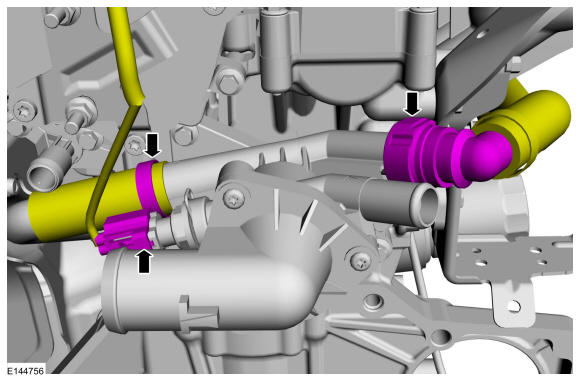

Disconnect the electrical connector. Release the hose clamp and disconnect the coolant hose. Depress the tabs and remove the quick disconnect. Use the General Equipment: Hose Clamp Remover/Installer
-
WARNING: Be prepared to collect escaping fluid.
- Disconnect the electrical connector.
- Release the hose clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
- Depress the tabs and disconnect the coolant hose quick disconnect fitting.

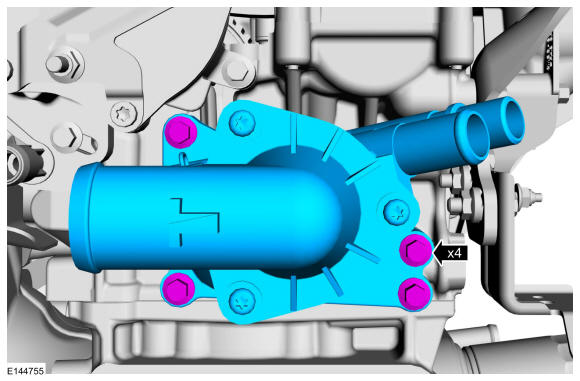

- Remove the bolts and the thermostat housing.
Torque: 89 lb.in (10 Nm)

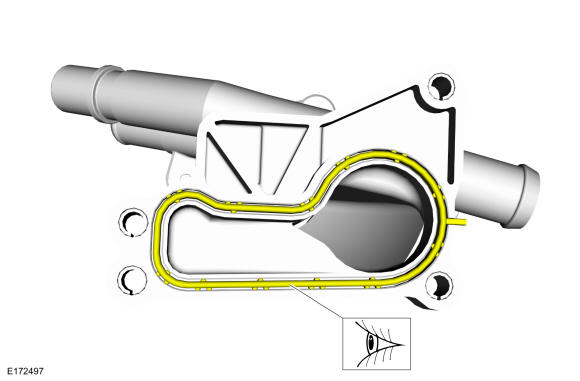

- Inspect the thermostat housing O-ring and replace if necessary.
