Removal And Installation: Radiator: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
Recover the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
WARNING: Be prepared to collect escaping fluid.

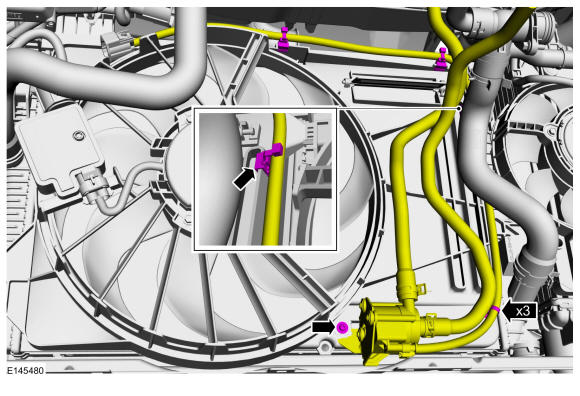

- Detach the wiring harness retainers.
- Remove the bolt and position the electric coolant pump aside.
  Torque: 53 lb.in (6 Nm)
Courtesy of FORD MOTOR COMPANY

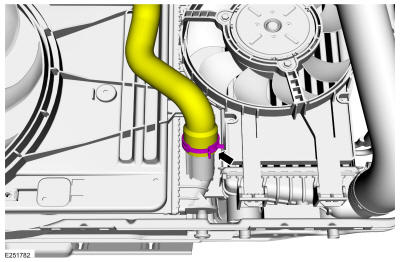

Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY
Remove the air cleaner. Refer to: Air Cleaner .
WARNING: Be prepared to collect escaping fluid.

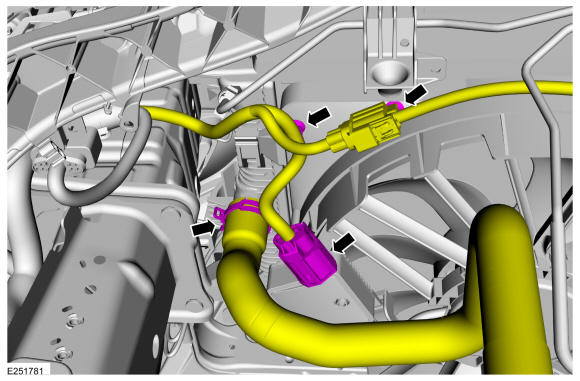

- Disconnect the electrical connector.
- Detach the pin-type harness retainers.
- Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

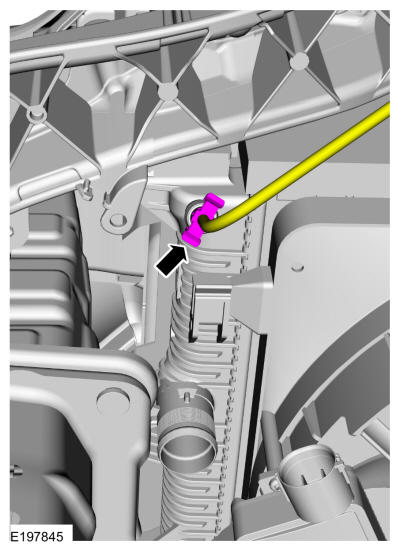

Depress the tabs and disconnect the coolant tube.

Courtesy of FORD MOTOR COMPANY
Remove the CAC. Refer to: Charge Air Cooler (CAC) .

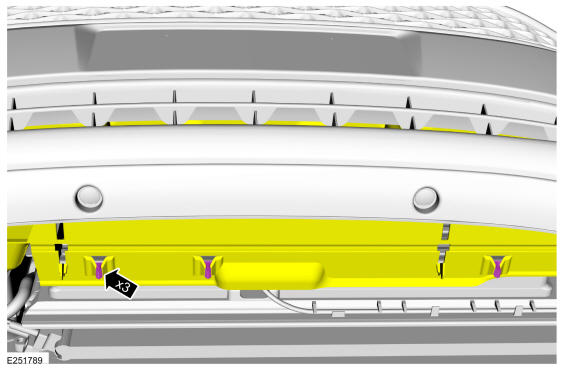

Detach the active grill shutter clips from the air deflector. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

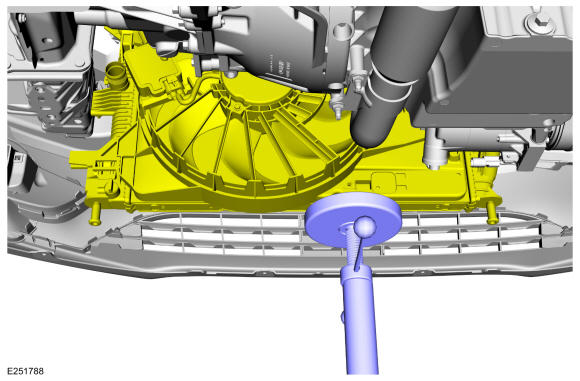

Support the cooling module. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY

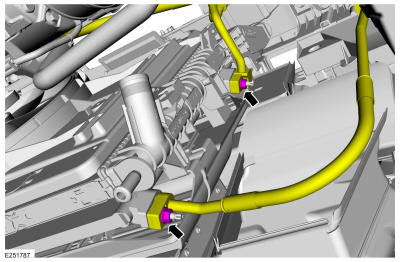

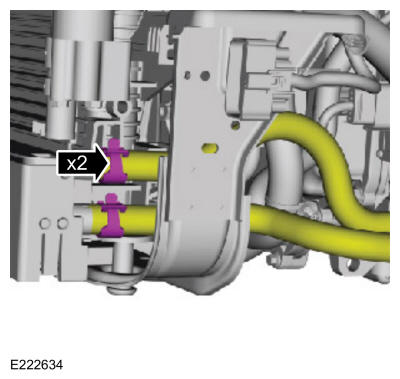

Remove the nuts and position the A/C lines aside.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

Release the clamps and disconnect the transmission fluid cooler hoses.

Courtesy of FORD MOTOR COMPANY

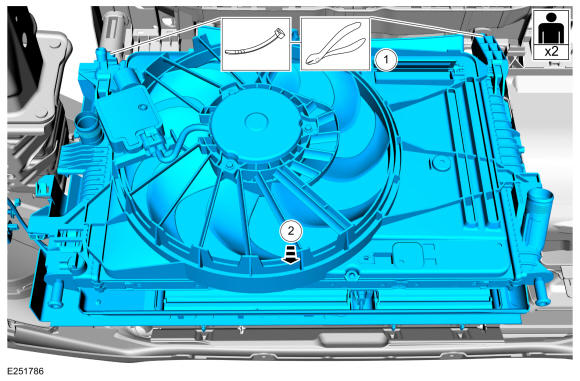

1. Cut the cable ties.
2. Remove the cooling module.
Courtesy of FORD MOTOR COMPANY

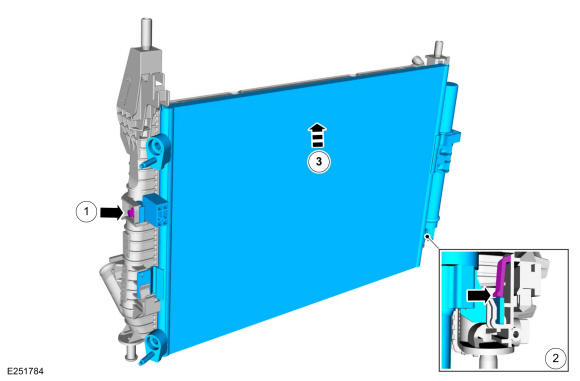

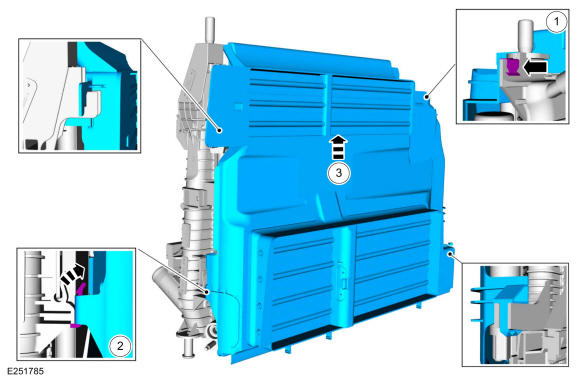

1. Remove the retaining clip.
2. Release the locking tab.
3. Raise the active grill shudder to separate it from the radiator.
Courtesy of FORD MOTOR COMPANY

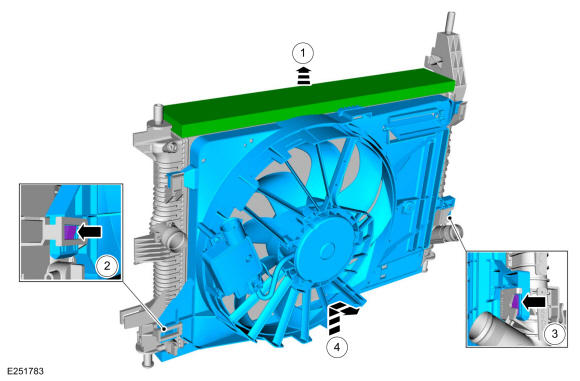

1. Remove the discard the foam pad.
2. Release the locking tab.
3. Release the locking tab.
4. Raise the cooling fan assembly to separate it from the radiator.
Courtesy of FORD MOTOR COMPANY
1. Remove the bolt.
  Torque: 89 lb.in (10 Nm)
2. Release the locking tab.
3. Raise the A/C condenser to separate it from the radiator.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

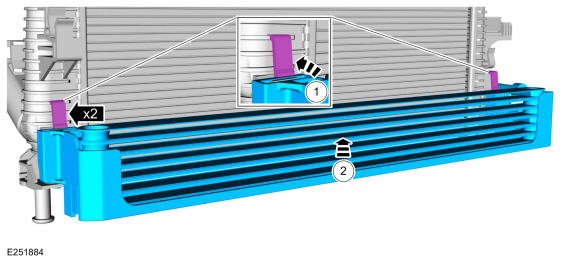

1. Release the locking tab.
2. Raise the transmission cooler to separate it from the radiator.

Courtesy of FORD MOTOR COMPANY
