Electric Coolant Pump: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

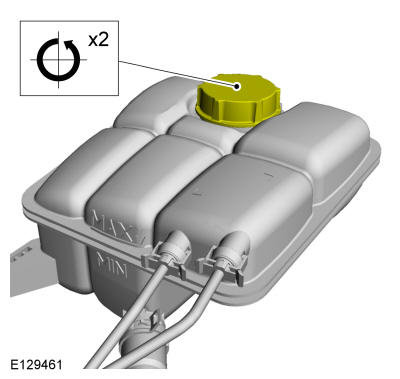

- WARNING: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.
Loosen the pressure relief cap.
-

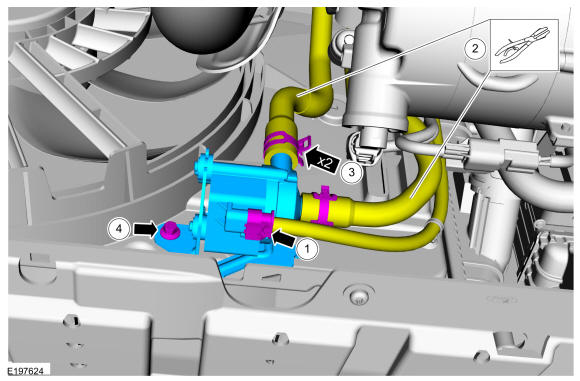

- Disconnect the electrical connector.
- Using a general tool, clamp both coolant hoses. Use the General Equipment: Locking Pliers
- Release the hose clamps and disconnect the coolant hoses. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the retainer and the electric coolant pump.
Torque: 53 lb.in (6 Nm)
