Cylinder Block Thermostat: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the generator. Refer to: Generator - 1.0L EcoBoost (92kW/125PS) .
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

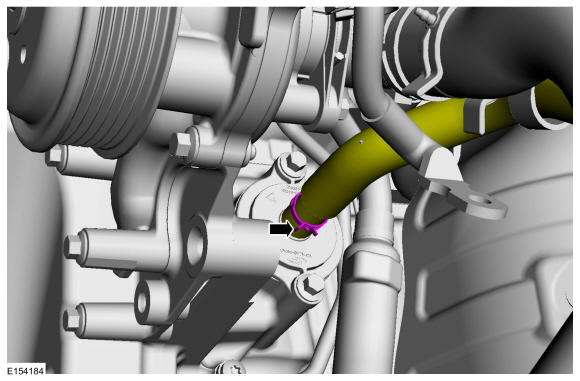

- Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

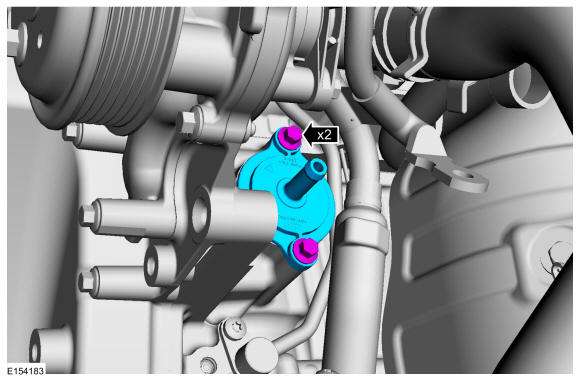

- Remove the bolts and the cylinder block thermostat.
Torque: 89 lb.in (10 Nm)
