Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
NOTE: If equipped.

Remove the retainers and the shield.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped.

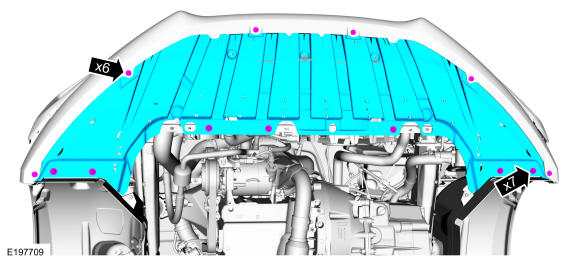

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Remove the pin-type retainers, the screws and the lower radiator air deflector.

Courtesy of FORD MOTOR COMPANY

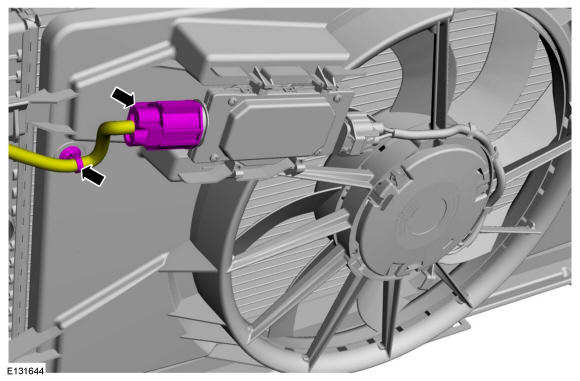

Disconnect the electrical connector and detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY

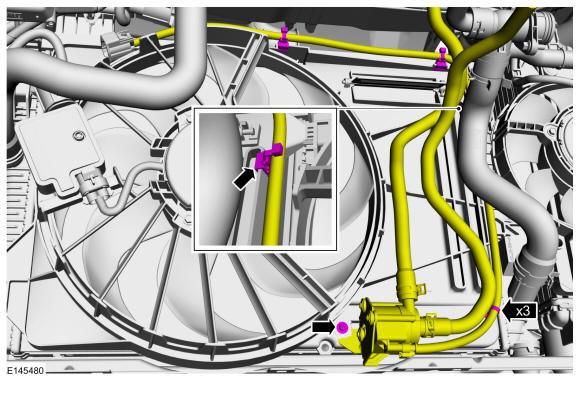

Remove the bolt and the wiring harness retainers. Position the electric coolant pump aside.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

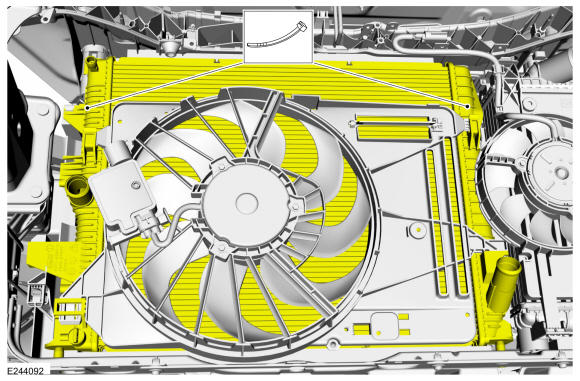

Using tie straps, support the radiator. Use the General Equipment: Cable Ties

Courtesy of FORD MOTOR COMPANY

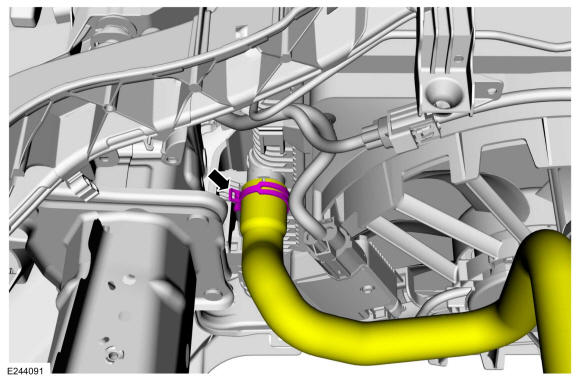

Release the clamp and disconnect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

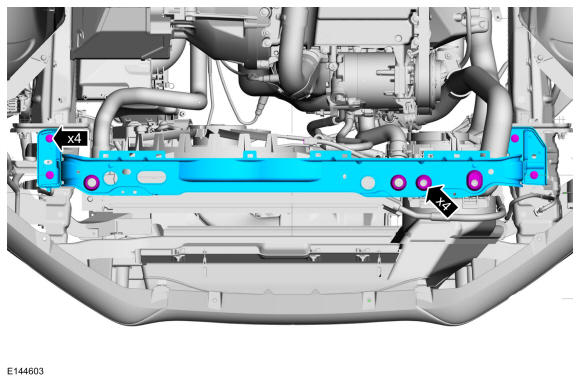

Remove the bolts and the lower radiator support.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

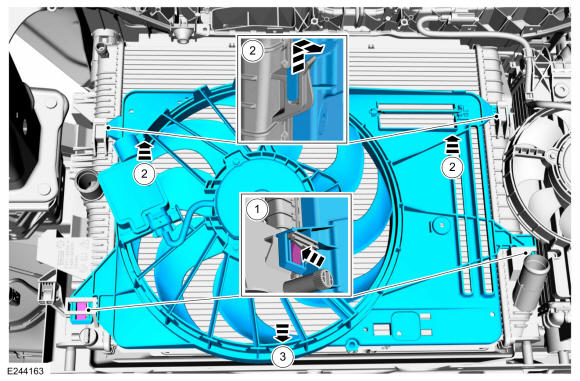

1. Release the lower radiator locking tabs.
2. Raise the cooling fan above the retaining hooks.
3. Remove the cooling fan motor and shroud.

Courtesy of FORD MOTOR COMPANY
