Coolant Pump: Removal
WARNING: This page is about a different variant/trim than selected.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .

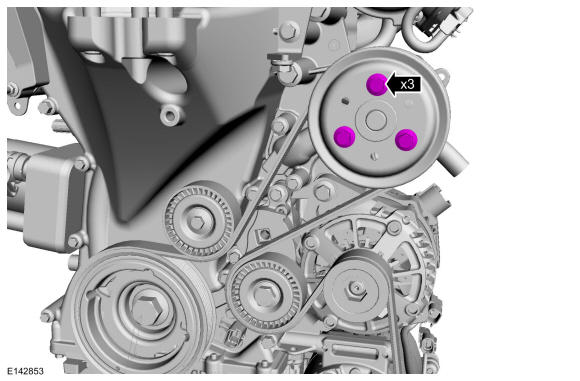

- Loosen the coolant pump pulley bolts. Loosen: 2 turn(s)
- Refer to: Accessory Drive Belt .

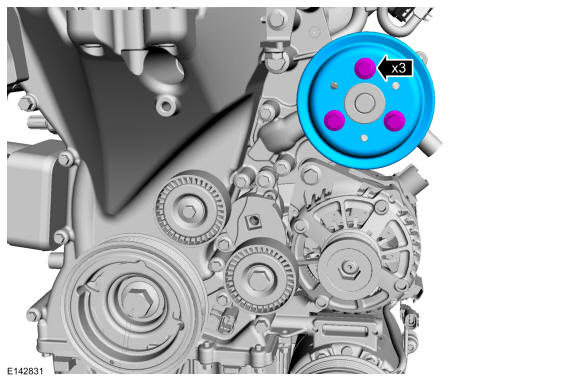

- Remove the bolts and the coolant pump pulley.

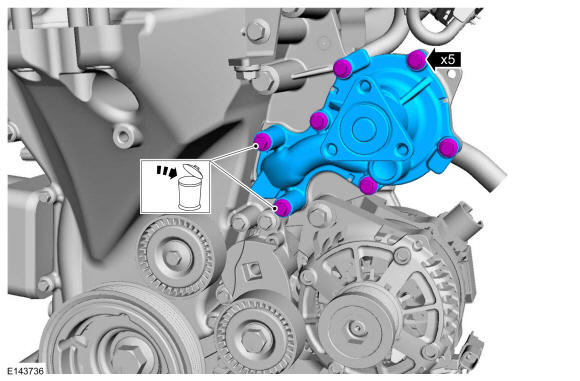

- Remove the coolant pump and the coolant pump. Discard the indicated bolts.
