Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Make sure that the gasket surfaces are clean, free of foreign material and coolant.
-

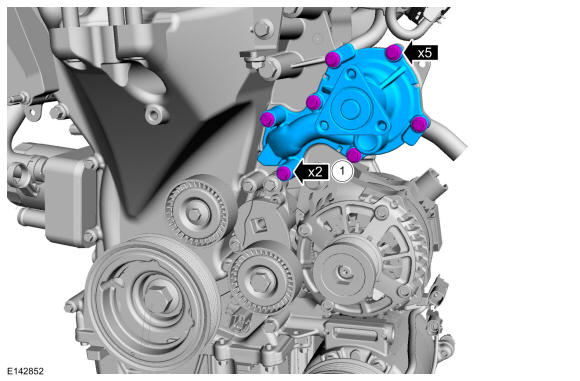

NOTE: Only tighten the bolts finger tight at this stage.
-
NOTE: Make sure that new components are installed.
-

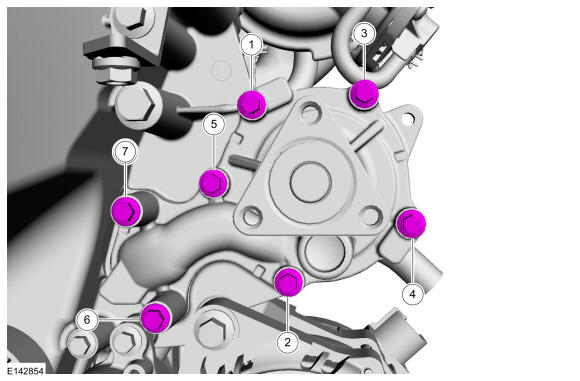

- Install the coolant pump and tighten the bolts.
Torque:1-5: 89 lb.in (10 Nm)6-7: Stage 1: 133 lb.in (15 Nm) Stage 2: 90°
-
NOTE: Only tighten the bolts finger tight at this stage.
Install the coolant pump pulley.
- Install the accessory drive belt. Refer to: Accessory Drive Belt .
- Tighten the coolant pump pulley bolts.
Torque: 18 lb.ft (25 Nm)
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
