Charge Air Cooling Fan and Shroud: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

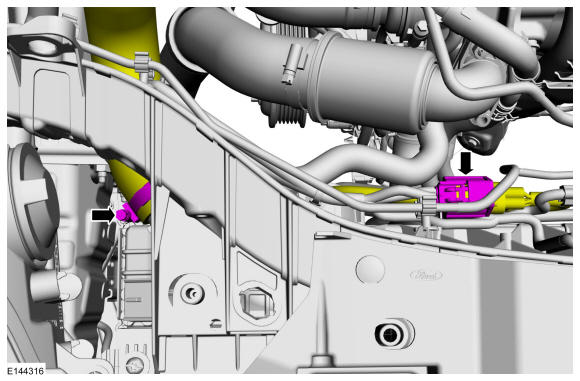

- Disconnect the electrical connector.

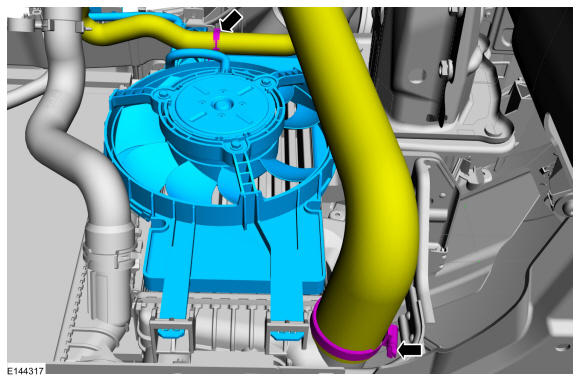

- Loosen the clamp and disconnect the CAC pipe.
Torque: 48 lb.in (5.4 Nm)

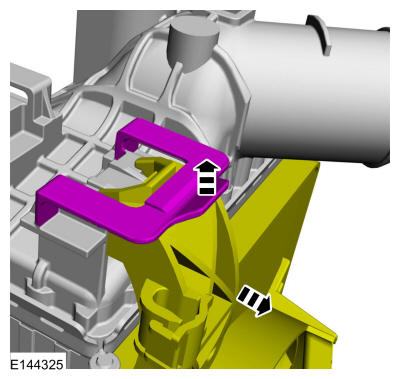

- Release the upper tab and position the charge air cooling fan and shroud outward.
-
NOTE: If equipped.

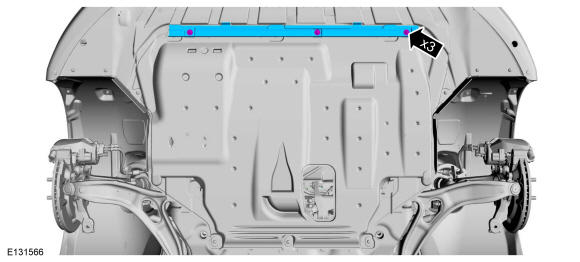

Remove the retainers and the shield.
-
NOTE: If equipped.

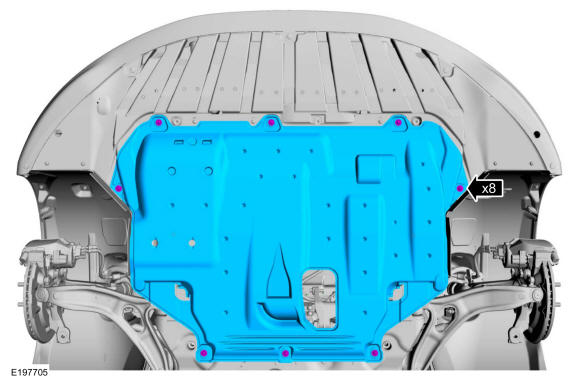

Remove the retainers and the underbody shield.
-
- Detach the coolant hose from the retainer.
- Loosen the clamp and disconnect the CAC pipe.
Torque: 48 lb.in (5.4 Nm)
- Remove the charge air cooling fan and shroud.
