Block Heater: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

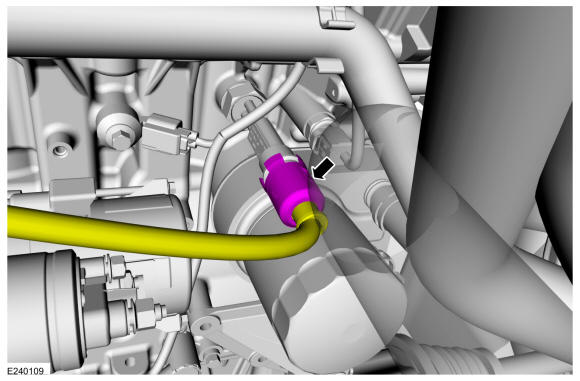

- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
-
NOTE: Make sure the block heater wiring is routed and secured away from rotating or hot components.
Disconnect the electrical connector.

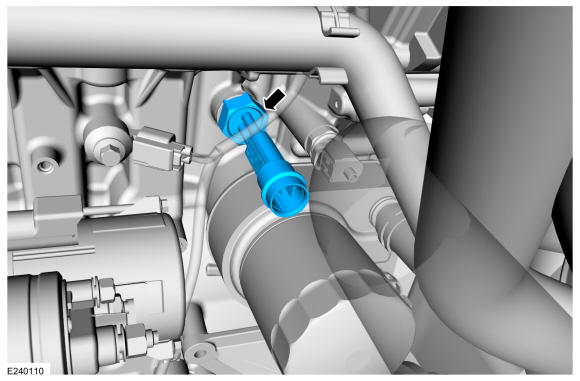

- Remove the block heater.
Torque: 18 lb.ft (25 Nm)
