Engine Cooling - Component Location
WARNING: This page is about a different variant/trim than selected.

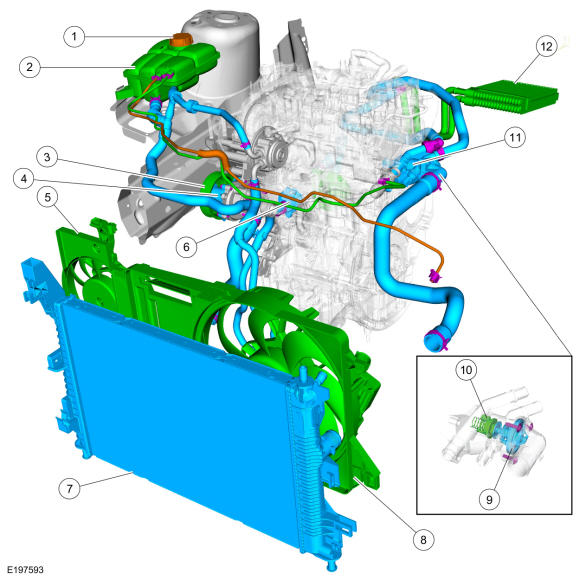

| Item | Description |
|---|---|
| 1 | Pressure relief cap |
| 2 | Degas bottle |
| 3 | Coolant pump pulley |
| 4 | Coolant pump |
| 5 | Charge Air Cooling Fan and Shroud |
| 6 | Cylinder Block Thermostat |
| 7 | Radiator |
| 8 | Cooling fan motor and shroud |
| 9 | Thermostat |
| 10 | Bypass valve |
| 11 | Thermostat housing |
| 12 | Heater core |

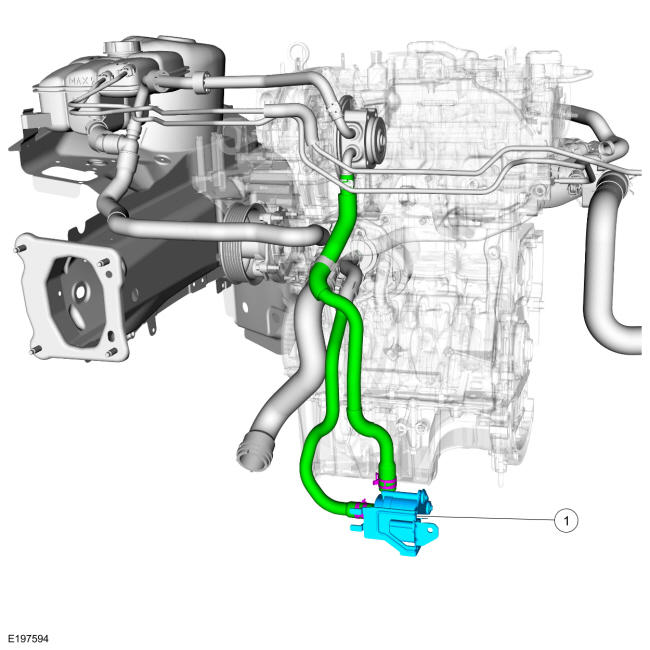

| Item | Description |
|---|---|
| 1 | Electric Coolant Pump |

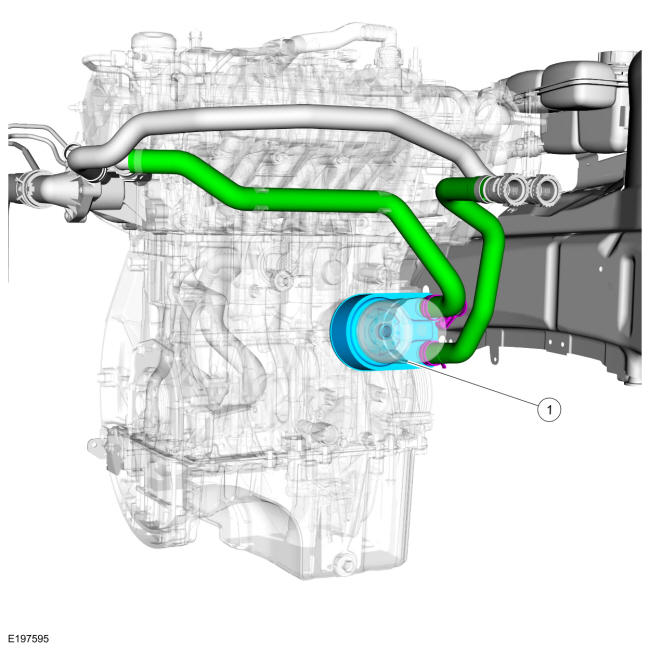

| Item | Description |
|---|---|
| 1 | Oil Cooler |
