Transmission - 2.3L EcoBoost (257kW/350PS) - MI4

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

GFD265836Courtesy of FORD MOTOR COMPANY
 303-1554 Engine Support Bar
Transmission Jack
Retaining Strap
Wooden Block
  1. Remove the cooling fan and shroud. Refer to: Cooling Fan Motor and Shroud .
  2. Remove the battery tray. Refer to: Battery Tray .
  3. Remove the wiring retainers and the nuts and remove the battery tray support bracket.
    GFD268998Courtesy of FORD MOTOR COMPANY
  4. Disconnect the gearshift cables.
    GFD265925Courtesy of FORD MOTOR COMPANY
  5. Remove the bell housing bolts.
    GFD265866Courtesy of FORD MOTOR COMPANY
  6. Disconnect the electrical connector, wiring retainer and remove the bolt and the ground strap.
    GFD268983Courtesy of FORD MOTOR COMPANY
  7. If equipped, remove the engine appearance cover.
    GFD264606Courtesy of FORD MOTOR COMPANY
  8. Position aside the wiring harness, remove the retainer nuts and brackets
    GFD265938Courtesy of FORD MOTOR COMPANY

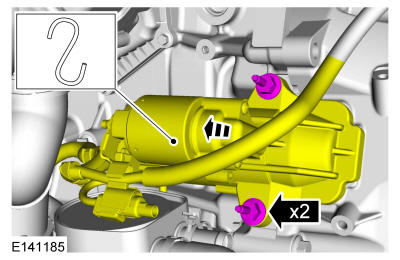

  9. Remove the bolts and position aside the starter.
    GFD265868Courtesy of FORD MOTOR COMPANY
  10. Disconnect and position aside the transmission breather tube.
    GFD268999Courtesy of FORD MOTOR COMPANY
  11. If equipped. Disconnect the electrical connector.
    GFD269000Courtesy of FORD MOTOR COMPANY
  12. Remove the PTU. Refer to: Power Transfer Unit .
  13. Remove the retaining nuts and the catalytic converter bracket.
    GFD269001Courtesy of FORD MOTOR COMPANY
  14. Position aside the PTU cooling hoses.
    GFD269002Courtesy of FORD MOTOR COMPANY
  15. Remove the LHF wheel and tire. Refer to: Wheel and Tire .
  16. If equipped. Remove the LHF inner fender splash shield and retainers.
    GFD269003Courtesy of FORD MOTOR COMPANY
  17. Remove the LHF inner splash shield and brake air duct cooler tube.
    GFD269004Courtesy of FORD MOTOR COMPANY
  18. Remove the ECM cover and retainers.
    GFD265920Courtesy of FORD MOTOR COMPANY
  19. Disconnect the ECM and position the harness aside.
    GFD265922Courtesy of FORD MOTOR COMPANY
  20. Disconnect the electrical connector.
    GFD266437Courtesy of FORD MOTOR COMPANY
  21. Remove the LH front halfshaft. Refer to: Front Halfshaft LH .
  22. Remove the lower control arm shield and push pin.
    GFD269005Courtesy of FORD MOTOR COMPANY
  23. Remove the bell housing bolts.
    GFD268989Courtesy of FORD MOTOR COMPANY
  24. Remove the bell housing bolts.
    GFD269006Courtesy of FORD MOTOR COMPANY

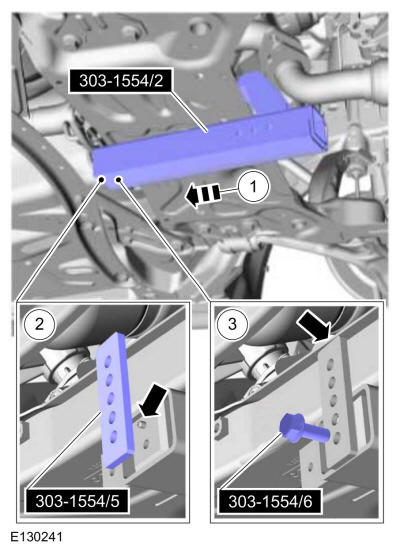

  25. NOTE: Use caution when lowering the vehicle after the special tool is installed. If the vehicle is lowered onto the special tool, damage to the special tool or the vehicle can occur.

    Install the special tool and support the engine. Install Special Service Tool: 303-1554 Engine Support Bar.

    GFD269007Courtesy of FORD MOTOR COMPANY
  26. NOTE: Use caution when lowering the vehicle after the special tool is installed. If the vehicle is lowered onto the special tool, damage to the special tool or the vehicle can occur.

    Install the special tool and support the engine. Install Special Service Tool: 303-1554 Engine Support Bar.

    GFD268055Courtesy of FORD MOTOR COMPANY

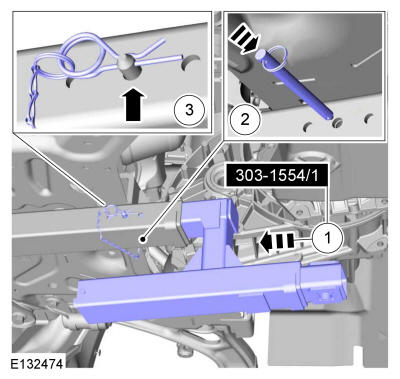

  27. NOTE: Use caution when lowering the vehicle after the special tool is installed. If the vehicle is lowered onto the special tool, damage to the special tool or the vehicle can occur.

    Install the special tool and support the engine. Install Special Service Tool: 303-1554 Engine Support Bar. Use the General Equipment: Wooden Block

    GFD269008Courtesy of FORD MOTOR COMPANY

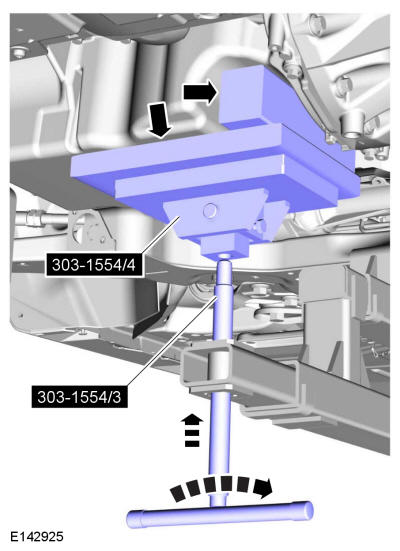

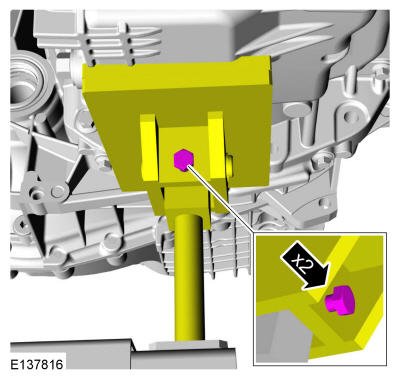

  28. Adjust the special tool.
    GFD269009Courtesy of FORD MOTOR COMPANY
  29. Remove the bolt and the transmission support insulator.
    GFD265934Courtesy of FORD MOTOR COMPANY
  30. Remove the bolts and the transmission support insulator bracket.
    GFD268970Courtesy of FORD MOTOR COMPANY
  31. NOTE: Make sure that all openings are sealed.

    Disconnect the clutch hydraulic tube.

    GFD265926Courtesy of FORD MOTOR COMPANY
  32. Install the following items:

    • Use the General Equipment: Transmission Jack
    • Use the General Equipment: Wooden Block
    • Use the General Equipment: Retaining Strap

    GFD268992Courtesy of FORD MOTOR COMPANY

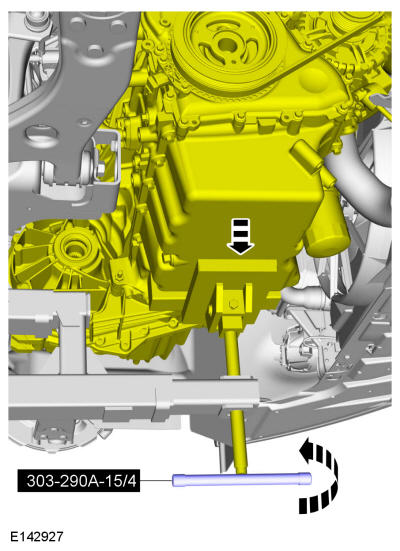

  33. Lower the powertrain. Use Special Service Tool: 303-1554 Engine Support Bar.
    GFD269010Courtesy of FORD MOTOR COMPANY

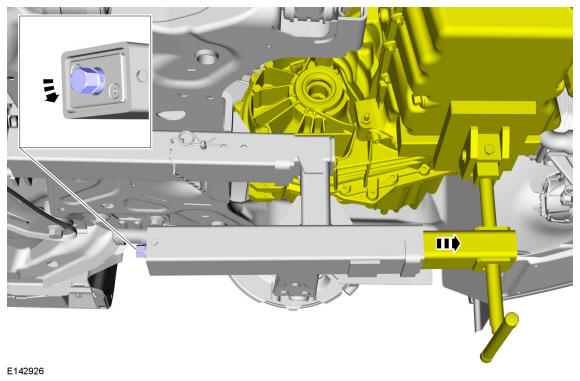

  34. Position the powertrain forward. Use Special Service Tool: 303-1554 Engine Support Bar.
    GFD268994Courtesy of FORD MOTOR COMPANY

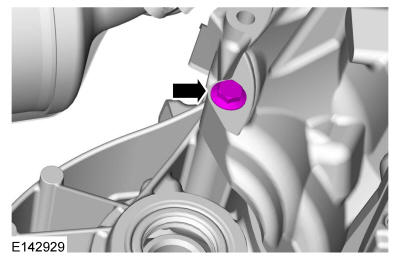

  35. Remove the bell housing bolt.
    GFD268995Courtesy of FORD MOTOR COMPANY

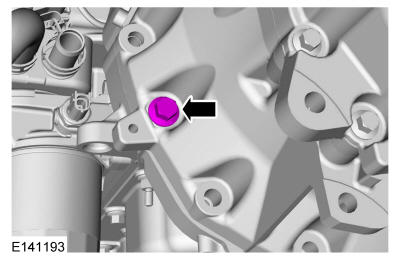

  36. Remove the bell housing bolt.
    GFD268996Courtesy of FORD MOTOR COMPANY

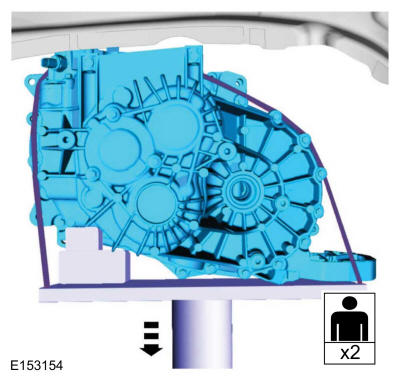

  37. NOTE: The angles of transmission will need to be adjusted as lowered.

    Remove the transmission.

GFD268997Courtesy of FORD MOTOR COMPANY
