Roll Restrictor RH: Removal

WARNING: This page is about a different variant/trim than selected.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
1. Remove the air deflector.
2. Remove the underbody shield.
Courtesy of FORD MOTOR COMPANY

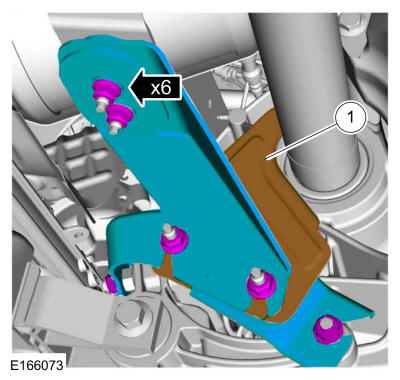

Remove the 6 nuts and the catalytic converter support bracket.
1. Remove the inspection cover.
Courtesy of FORD MOTOR COMPANY
Remove the bolts.

Courtesy of FORD MOTOR COMPANY
Remove the roll restrictor.
1. Remove the studbolt.
2. Remove the studbolt, the bolt and the roll restrictor.

Courtesy of FORD MOTOR COMPANY
