Roll Restrictor RH - 2.3L EcoBoost (257kW/350PS) - MI4: Removal

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

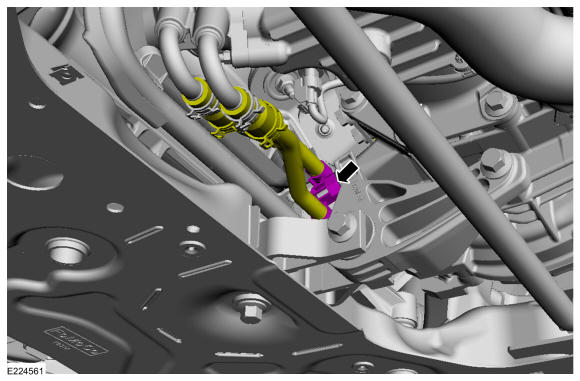

2. Remove the underbody shield.

   Courtesy of FORD MOTOR COMPANY

   Courtesy of FORD MOTOR COMPANY

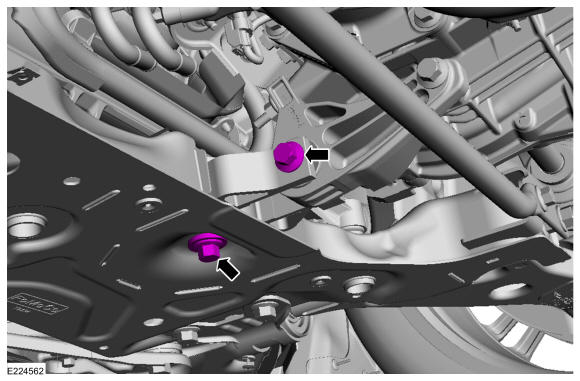

3. Remove the bolts.

   Courtesy of FORD MOTOR COMPANY

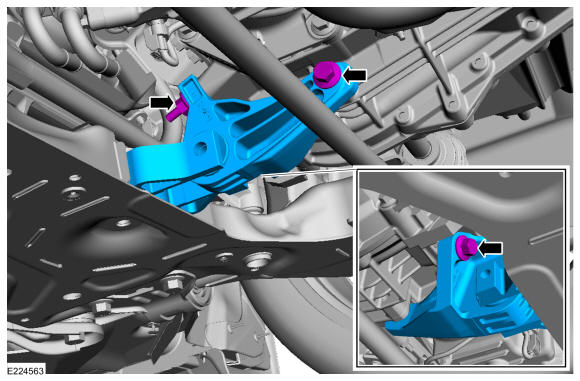

4. Remove the roll restrictor.
   1. Remove the forward studbolt.
   2. Remove the studbolt, the bolt and the roll restrictor.

Courtesy of FORD MOTOR COMPANY
