Neutral Position Sensor - 2.3L EcoBoost (257kW/350PS) - MI4: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
- Remove the screws and the deflector shield.
- Remove the screws and the engine undershield.
 Courtesy of FORD MOTOR COMPANY
|

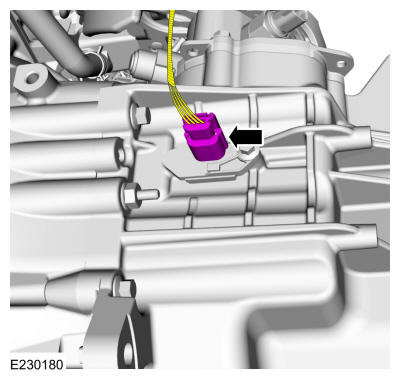

- Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

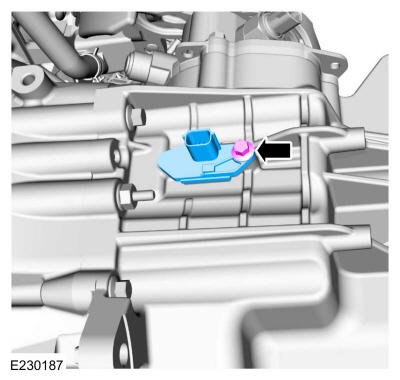

- Remove the bolt and the neutral position sensor.
Torque
: 106 lb.in (12 Nm)
 Courtesy of FORD MOTOR COMPANY
|
