Input Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.

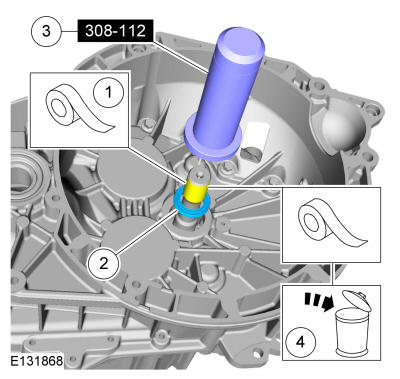

1. NOTE: Use adhesive tape to cover the input shaft splines to prevent damage to the input shaft seal.

  Apply tape to the splines to protect the seal. Use the General Equipment: Adhesive Tape
2. Position a new seal on the input shaft in the clutch housing.
3. Using the special tool, install the seal. Use Special Service Tool: 308-112 Installer, Output Drive Flange Seal.
4. Remove and discard the tape.
Courtesy of FORD MOTOR COMPANY

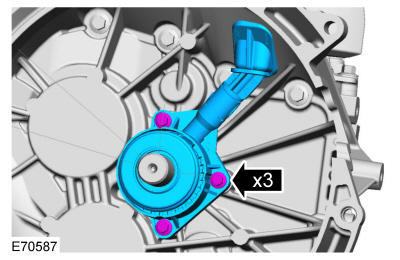

Install the clutch slave cylinder and tighten the bolts.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
