Halfshaft Seal LH: Removal
WARNING: This page is about a different variant/trim than selected.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-
- Remove the air deflector.
- Remove the underbody shield.
- Remove the LH halfshaft. Refer to: Front Halfshaft LH .

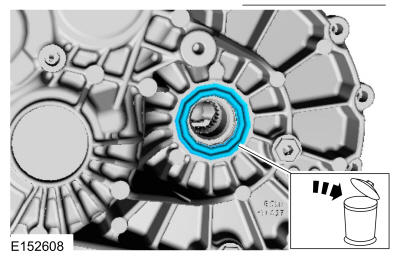

- Remove the halfshaft seal.
