Transmission Draining and Filling

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Name	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

Filling

Refer to: Health and Safety Precautions .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped. Remove the underbody shield.
1. Remove the air deflector.
2. Remove the underbody shield.
Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

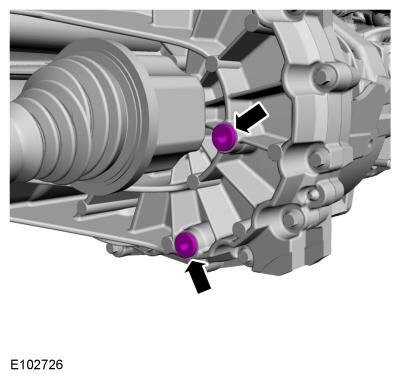

Remove the fill plug, the drain plug and drain the transmission fluid.

Courtesy of FORD MOTOR COMPANY

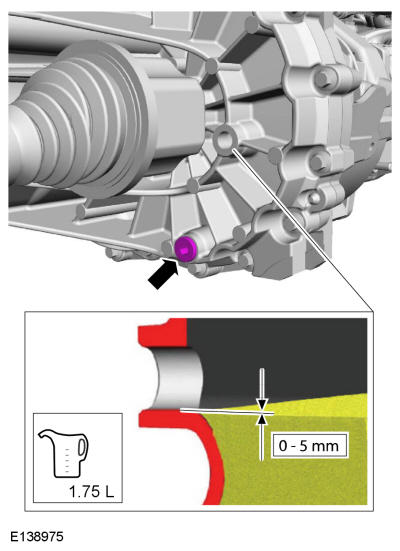

Install the drain plug and add or remove transmission fluid as necessary.
Material

: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

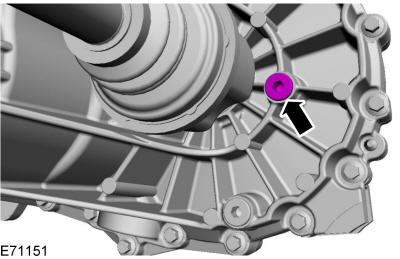

Install the fill plug.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Install the underbody shield.
1. Install the underbody shield.
2. Install the air deflector.
Courtesy of FORD MOTOR COMPANY
Lower the Vehicle.
