Synchronizer rings for single synchronization in 5th/6th/reverse gear

WARNING: This page is about a different variant/trim than selected.

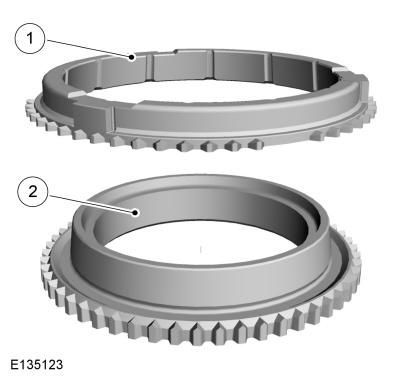

GFD268932Courtesy of FORD MOTOR COMPANY
Item Description
1 Synchronizer ring
2 Synchronizer cone
