Synchronizer ring for triple synchronization in 1st/2nd gear

WARNING: This page is about a different variant/trim than selected.

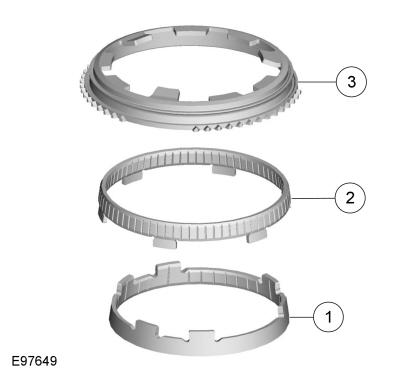

GFD268930Courtesy of FORD MOTOR COMPANY
Item Description
1 Inner synchronizer ring
2 Synchronizer cone
3 Outer synchronizer ring
