Selector Mechanism: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the air cleaner. Refer to: Air Cleaner .
- Remove the battery tray. Refer to: Battery Tray .

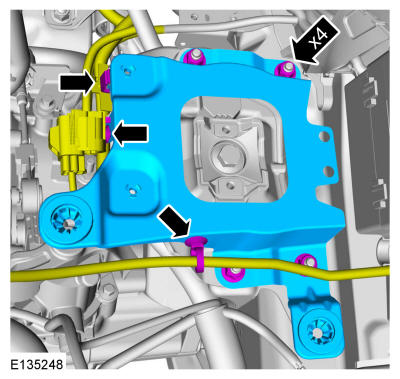

- Disconnect the wiring retainers, remove the nuts and remove the battery tray support bracket.

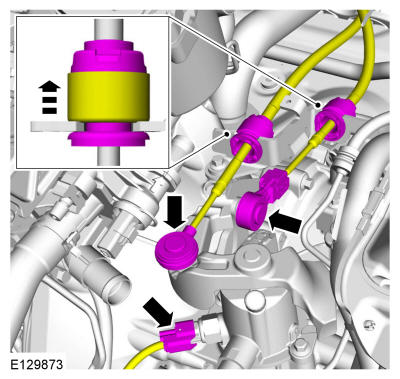

- Disconnect the shift cables from the transmission and the shift cable bracket and disconnect the reverse light switch.

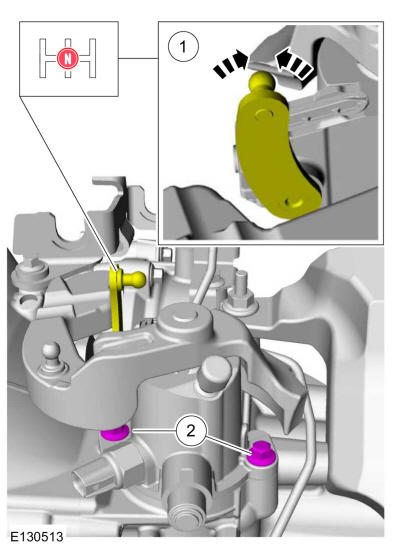

- Place the transmission in neutral and remove the bolts.
-
NOTE: Make sure that no components catch.

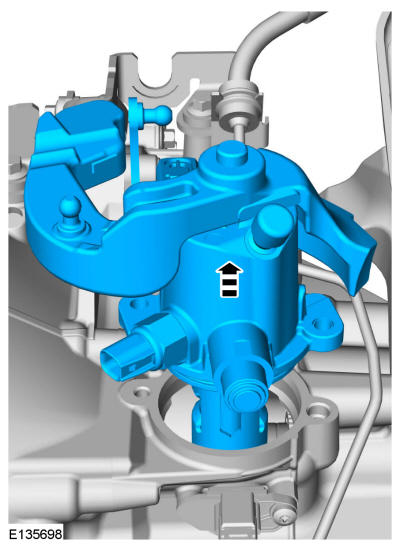

Remove the selector mechanism from the transmission.
