Roll Restrictor RH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the underbody shield.
    GFD266159Courtesy of FORD MOTOR COMPANY

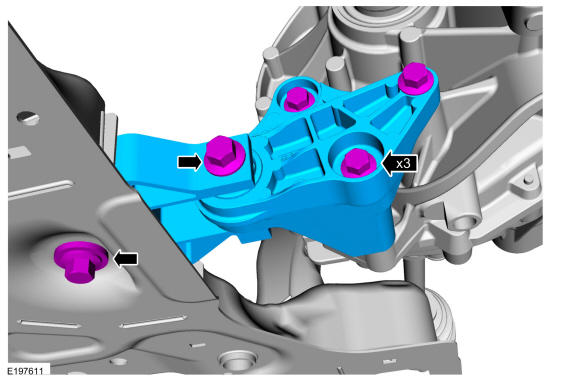

  3. Remove the bolts and remove the roll restrictor and bracket.
GFD268786Courtesy of FORD MOTOR COMPANY
