Roll Restrictor RH: Installation
WARNING: This page is about a different variant/trim than selected.

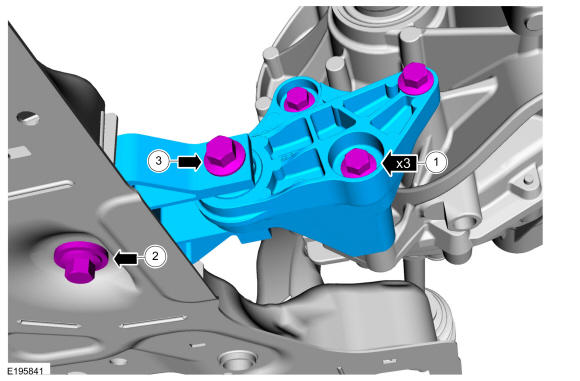

- Install the roll restrictor and bracket.
Torque
:1: 52 lb.ft (70 Nm) 2: 92 lb.ft (125 Nm) 3: 92 lb.ft (125 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- Install the underbody shield.
 Courtesy of FORD MOTOR COMPANY
|
