Neutral Position Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the air cleaner. Refer to: Air Cleaner .

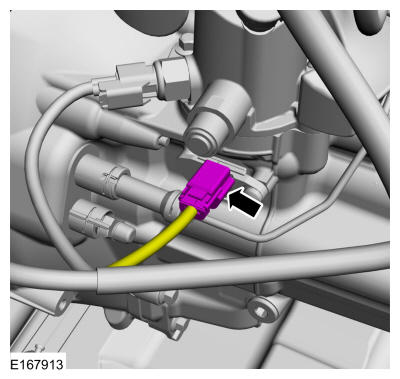

  2. Disconnect the neutral position sensor electrical connector.
    GFD268796Courtesy of FORD MOTOR COMPANY

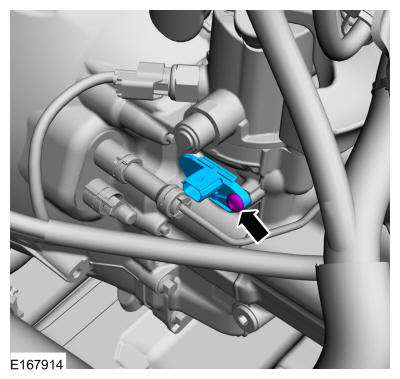

  3. Remove the bolt and the neutral position sensor.

    Torque

    : 97 lb.in (11 Nm)

GFD268797Courtesy of FORD MOTOR COMPANY
