Transmission Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Fluid Suction Gun

Materials

Name	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

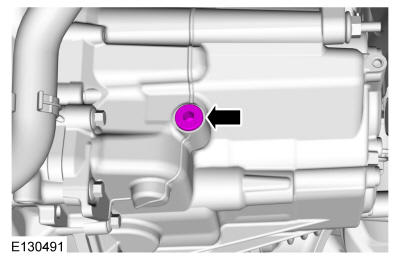

Remove the fill plug.

Courtesy of FORD MOTOR COMPANY

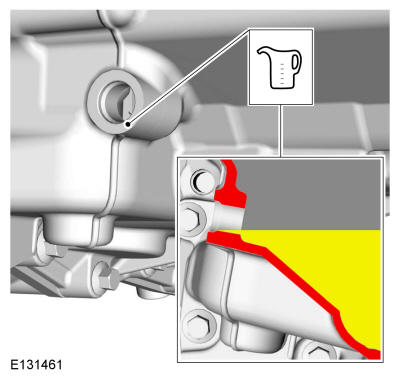

Fill the transmission through the fill hole until it is level with the bottom of the fill hole.
Material

: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY

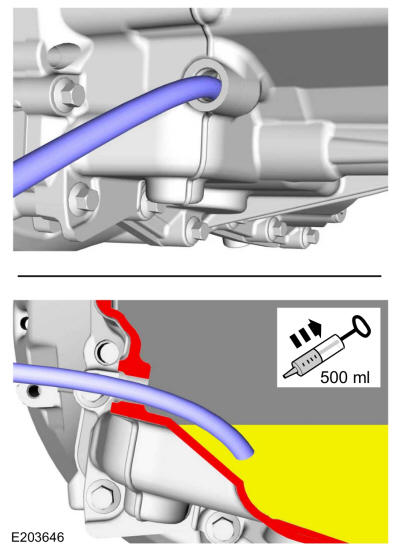

Drain fluid from the fill hole. Use the General Equipment: Fluid Suction Gun
Volume

: 0.53qt (500ml)

Courtesy of FORD MOTOR COMPANY
Install the fill plug.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Install the underbody shield.

Courtesy of FORD MOTOR COMPANY
