Section 38 (Manual Transmission - 6-Speed Manual Transmission - B6): Disassembly: Transmission

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	307-003 (T57L-500-B) Holding Fixture, Transmission
Puller
Punch

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT ELECTRIC) . Failure to follow this instruction may result in serious personal injury.

Remove the bolts and the roll restrictor bracket.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and the slave cylinder.

Courtesy of FORD MOTOR COMPANY
Install the special tool on the clutch housing and install the transmission on a bench. Remove and discard the RH halfshaft seal and the transmission case bolts. Install Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.

Courtesy of FORD MOTOR COMPANY
Remove the bolts and remove the shift cable brackets.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the selector lever is in the neutral (N) position.

Position the selector mechanism in neutral, remove the bolts and remove selector mechanism.

Courtesy of FORD MOTOR COMPANY
Install new transmission shaft support bolts.

Courtesy of FORD MOTOR COMPANY

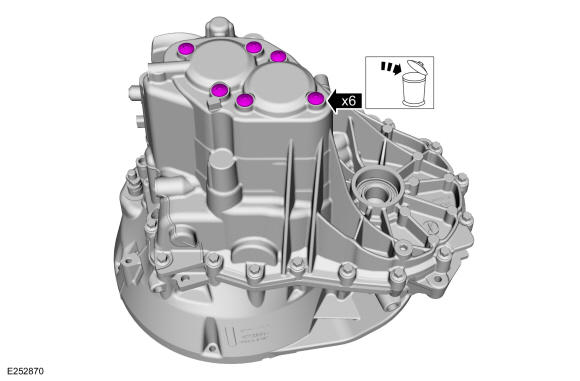

Remove and discard the transmission case bolts and the halfshaft seal.

Courtesy of FORD MOTOR COMPANY
Remove and discard the transmission case bolts and remove the transmission case.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the lube tube for assembly.

Remove the lube tube and the magnet from the transmission case.

Courtesy of FORD MOTOR COMPANY
Remove the reverse shift fork and the reverse synchronizer detents and the sleeve.

Courtesy of FORD MOTOR COMPANY
NOTE: The differential ring gear may hang up on the shaft assemblies.

Remove the input and output shaft assemblies.

Courtesy of FORD MOTOR COMPANY

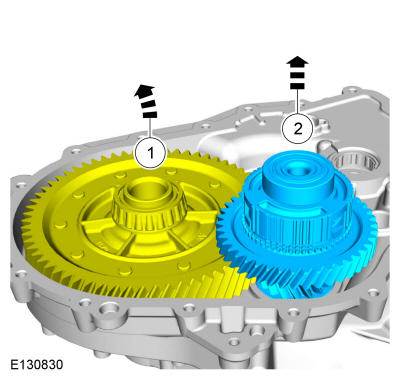

1. Position aside the differential.
2. Remove the reverse idler gear.
Courtesy of FORD MOTOR COMPANY

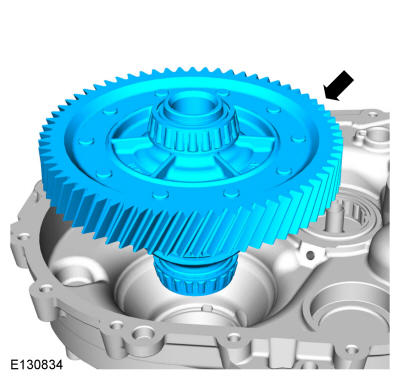

Remove the differential.

Courtesy of FORD MOTOR COMPANY

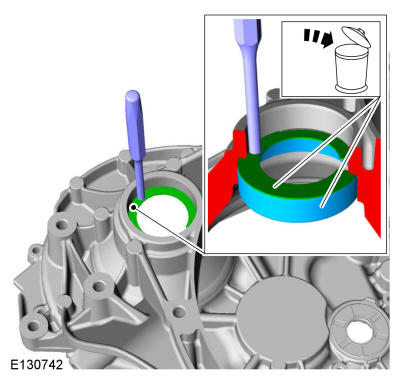

Using a punch, drive the differential bearing cup and shim out of the clutch housing. Remove and discard the bearing cup and the shim. Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY

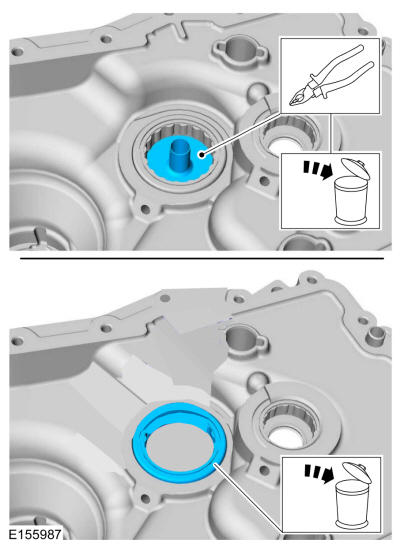

Remove and discard the lube funnel. Remove and discard the front output shaft roller bearing.

Courtesy of FORD MOTOR COMPANY

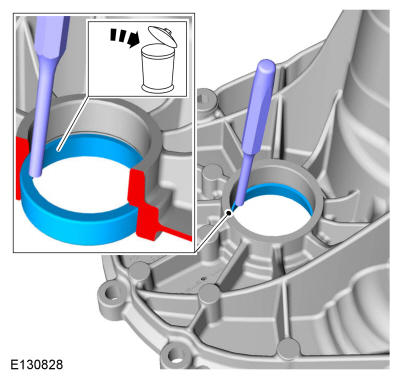

Remove and discard the input shaft front bearing and seal. Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY
Remove the shift rod bushing from the clutch housing. Use the General Equipment: Puller

Courtesy of FORD MOTOR COMPANY

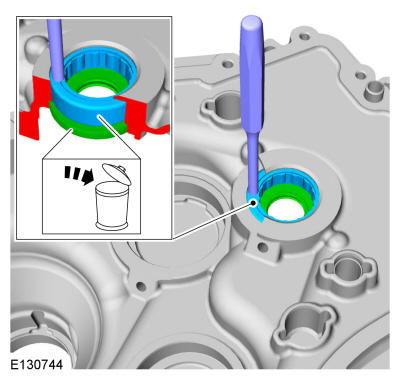

Remove and discard the differential bearing cup from the transmission case. Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY

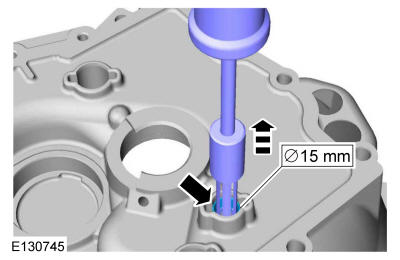

Remove the shift rod bushing from the transmission case. Use the General Equipment: Puller

Courtesy of FORD MOTOR COMPANY

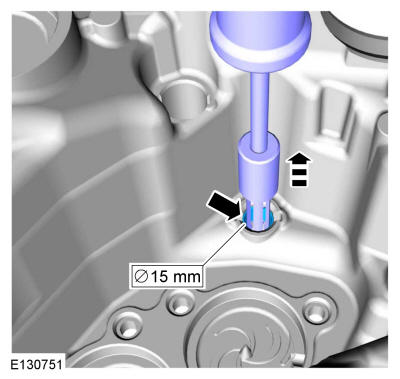

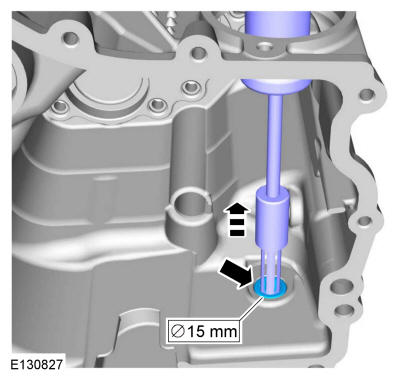

Remove the selector mechanism bearing. Use the General Equipment: Puller
