Disassembly And Assembly Of Subassemblies: Differential: Disassembly

NOTE: Use vise jaw protectors.

1. Clamp the differential in a vise.

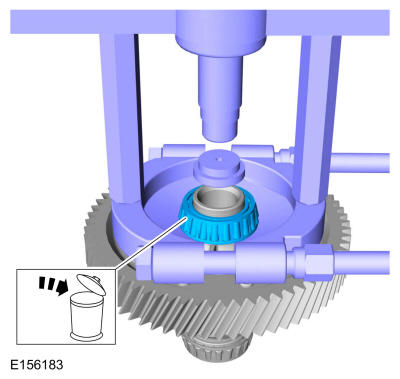

2. Remove the bearing. Use the General Equipment: Bearing Separator Use the General Equipment: Puller

   Courtesy of FORD MOTOR COMPANY

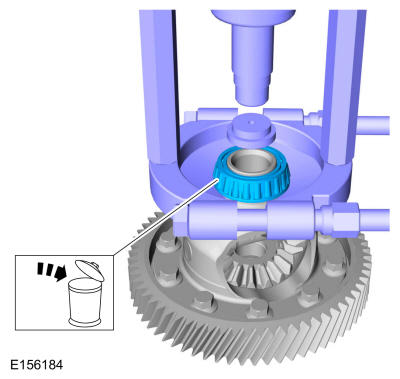

3. Remove the bearing. Use the General Equipment: Bearing Separator Use the General Equipment: Puller

   Courtesy of FORD MOTOR COMPANY

4. Remove the following items:
   1. Loosen: Four turn(s)
   2. Remove and discard the bolts.
   3. Save four bolts for reassembly.

   Courtesy of FORD MOTOR COMPANY

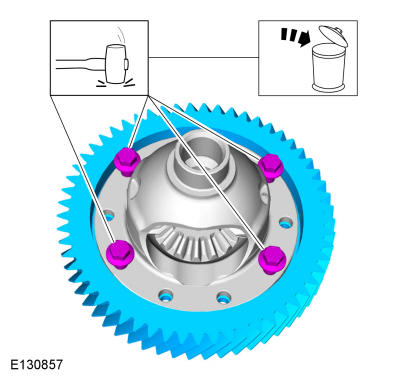

5. Lightly tap the bolts to remove the ring gear from the differential and remove the 4 bolts.

Courtesy of FORD MOTOR COMPANY
