Roll Restrictor RH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: Jacking and Lifting - Overview .
    1. Remove the air deflector.
    2. Remove the underbody shield.
    GFD266159Courtesy of FORD MOTOR COMPANY

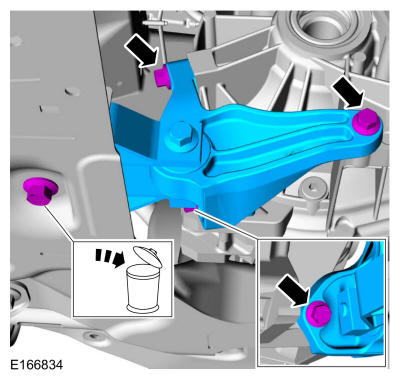

  3. Remove the bolts and the roll restrictor.
GFD268626Courtesy of FORD MOTOR COMPANY
