Neutral Position Sensor: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: BATTERY TRAY .

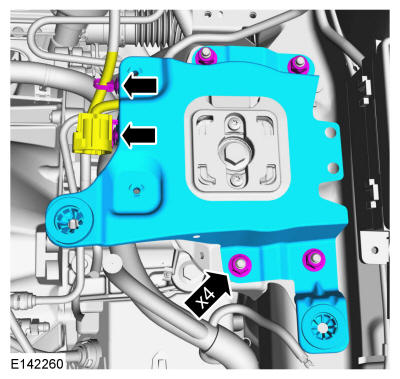

    GFD268566Courtesy of FORD MOTOR COMPANY
  2. NOTE: Gearshift cables must not be kinked or bent.

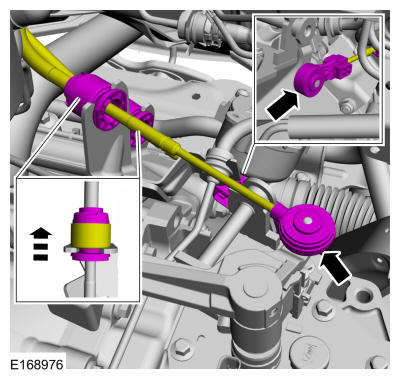

    GFD268567Courtesy of FORD MOTOR COMPANY

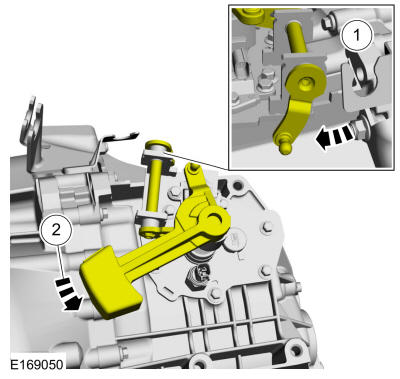

    GFD268568Courtesy of FORD MOTOR COMPANY

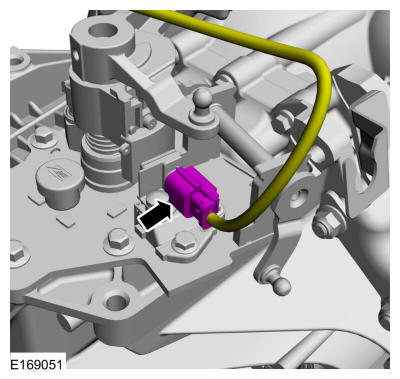

    GFD268569Courtesy of FORD MOTOR COMPANY
  3. Torque

    : 97 lb.in (11 Nm)

GFD268534Courtesy of FORD MOTOR COMPANY
