Halfshaft Seal LH: Removal

WARNING: This page is about a different variant/trim than selected.

Refer to: Wheel and Tire .
Remove engine undershield - If equipped.
If equipped.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

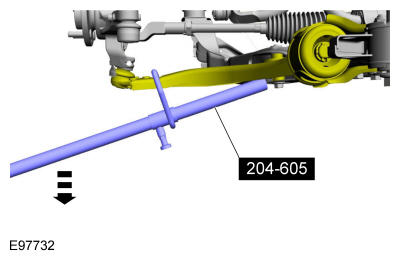

Use Special Service Tool: 204-605 Separator, Lower Arm Ball Joint.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
Use Special Service Tool: 204-609 Protection Cap, Ball Joint Gaiter.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
NOTE: Be prepared to collect escaping fluid.

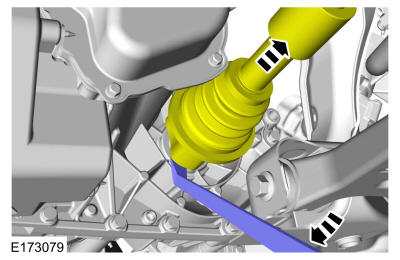

Use the General Equipment: Tire Lever

Courtesy of FORD MOTOR COMPANY

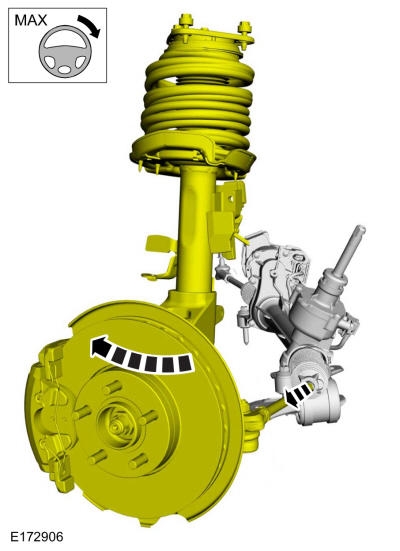

NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.

NOTE: The inner constant velocity (CV) joint must not be bent more than 18°.

NOTE: The outer constant velocity (CV) joint must not be bent more than 45°.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

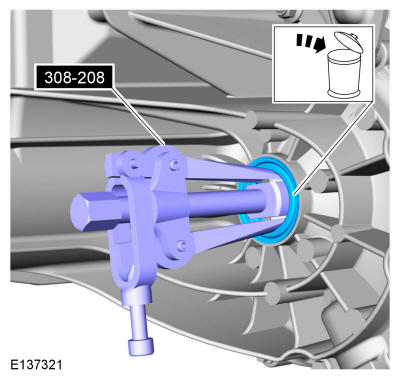

Use Special Service Tool: 308-208 Remover, Halfshaft Seal.

Courtesy of FORD MOTOR COMPANY
