Halfshaft Seal LH: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure a new component is installed.

Courtesy of FORD MOTOR COMPANY

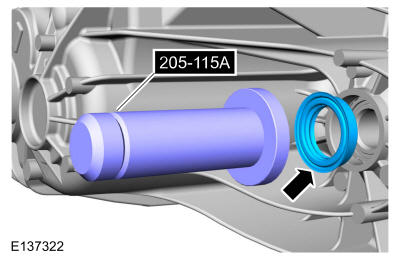

Use Special Service Tool: 205-115A (205-115) Installer, Drive Pinion Seal.

Courtesy of FORD MOTOR COMPANY

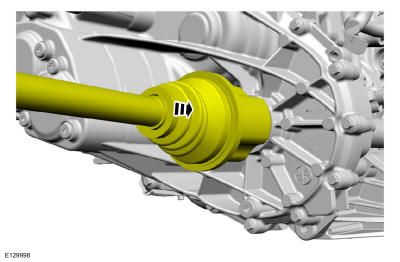

NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.

NOTE: The inner constant velocity (CV) joint must not be bent more than 18°.

NOTE: The outer constant velocity (CV) joint must not be bent more than 45°.

NOTE: Take extra care not to damage the seal.

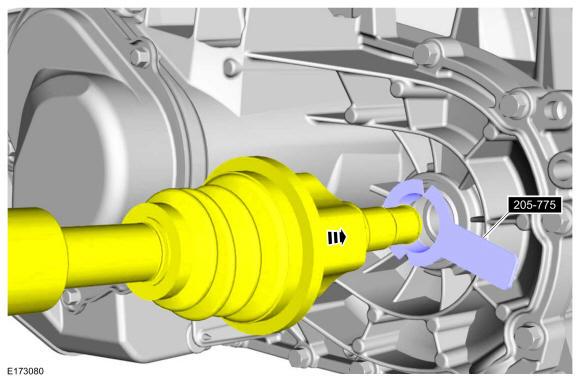

1. Use Special Service Tool: 205-775 Protector, Halfshaft Seal.
Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care not to damage the seal.

Remove the special tool before completely installing the halfshaft. Remove Special Service Tool: 205-775 Protector, Halfshaft Seal.

Courtesy of FORD MOTOR COMPANY

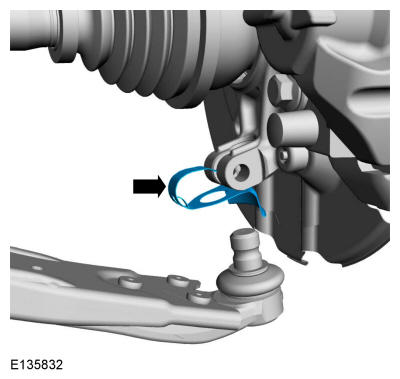

Remove Special Service Tool: 204-609 Protection Cap, Ball Joint Gaiter.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

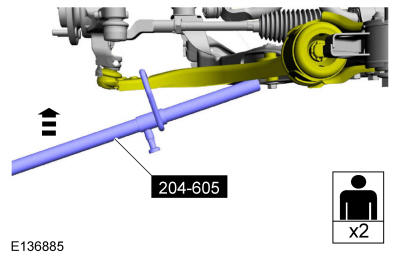

Use Special Service Tool: 204-605 Separator, Lower Arm Ball Joint.

Courtesy of FORD MOTOR COMPANY

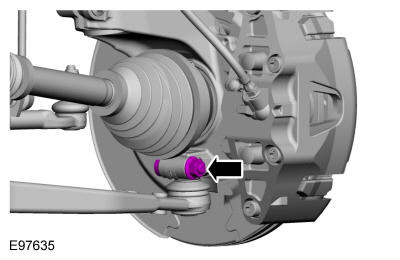

NOTE: Make sure a new bolt is installed.

NOTE: Make sure a new nut is installed.

Torque

: 61 lb.ft (83 Nm)

Courtesy of FORD MOTOR COMPANY
Torque
: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Transmission Fluid Level Check .
Install engine undershield - If equipped.
Refer to: Wheel and Tire .
