3rd-4th Gear Synchronizer: Removal

WARNING: This page is about a different variant/trim than selected.
    1. Install Special Service Tool: 205-329 Mounting Bracket, Engine/Differential., 303-435 Mounting Stand., 303-435-06 Mounting Bracket for 303-435.
    2. NOTE: Note the different lengths of the bolts.
    3. WARNING: Be prepared to collect escaping fluid.

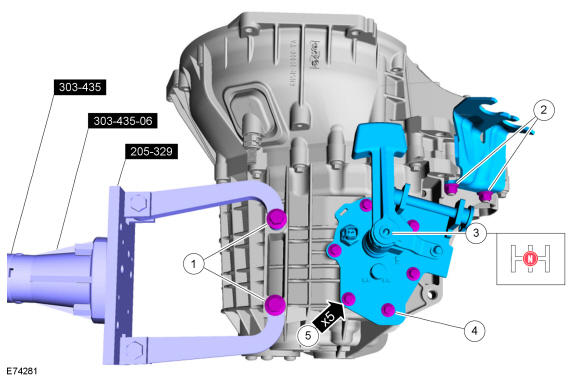

    GFD268578Courtesy of FORD MOTOR COMPANY

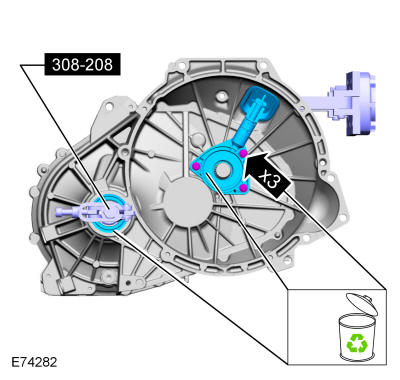

  2. Use Special Service Tool: 308-208 Remover, Halfshaft Seal.
    GFD268579Courtesy of FORD MOTOR COMPANY

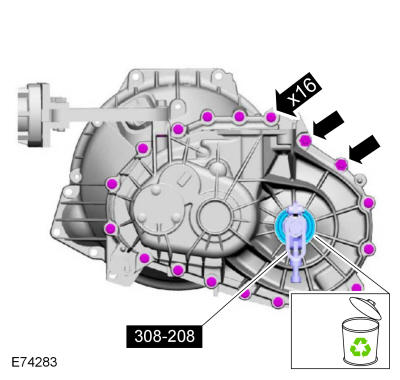

  3. Use Special Service Tool: 308-208 Remover, Halfshaft Seal.
    GFD268580Courtesy of FORD MOTOR COMPANY

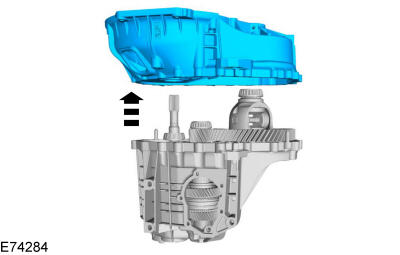

    GFD268581Courtesy of FORD MOTOR COMPANY
    GFD268582Courtesy of FORD MOTOR COMPANY
  4. NOTE: Note the position of the components before removal.
    GFD268583Courtesy of FORD MOTOR COMPANY
    GFD268584Courtesy of FORD MOTOR COMPANY
    GFD268585Courtesy of FORD MOTOR COMPANY
  5. NOTE: Note the position of the components before removal.

    Use the General Equipment: Vise Jaw Protectors

    GFD268586Courtesy of FORD MOTOR COMPANY
    NOTE: Use vise jaw protectors.
  6. Remove the following items:

    1. Roller bearing. Use Special Service Tool: 205-295 Remover, Bearing (Main Tool). 308-195 Collet for 205-295.

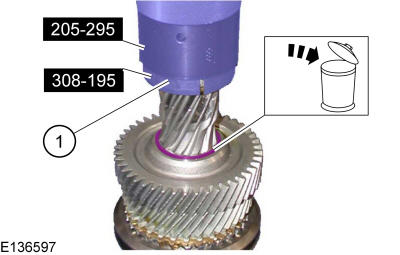

    GFD268587Courtesy of FORD MOTOR COMPANY
  7. Use Special Service Tool: 308-230 Support Plate, Gear Removal (Dia 85.1 mm). Use the General Equipment: Hydraulic Press
    GFD268588Courtesy of FORD MOTOR COMPANY

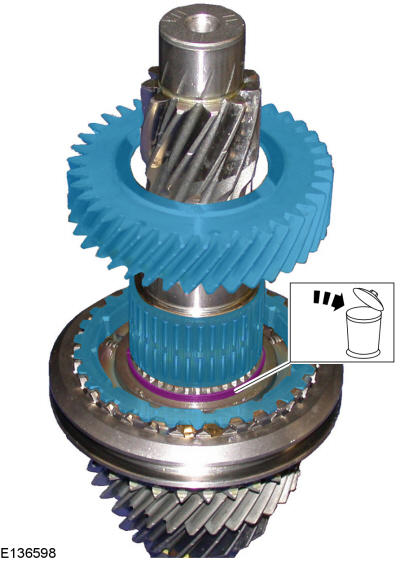

    GFD268589Courtesy of FORD MOTOR COMPANY

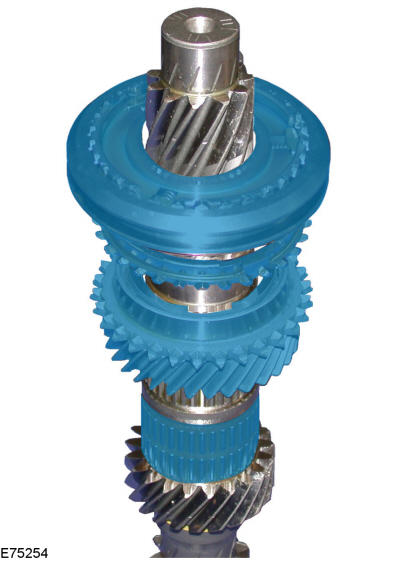

    GFD268590Courtesy of FORD MOTOR COMPANY
  8. NOTE: Note the position of the components before removal.

    Disassemble the following items:

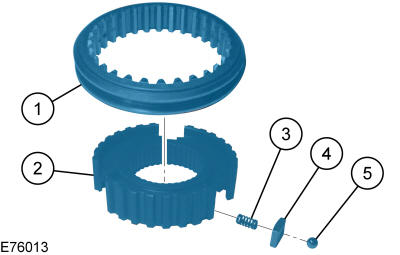

GFD268591Courtesy of FORD MOTOR COMPANY
