3rd-4th Gear Synchronizer: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Use vise jaws protectors.

NOTE: Make sure that the components are installed to the position noted before removal.

Lubricate the synchronizer rings with manual transmission fluid before assembly.

Material

: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)
Assemble the following items:

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

Courtesy of FORD MOTOR COMPANY

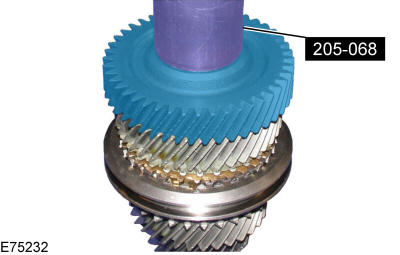

Use Special Service Tool: 205-068 Installer, Drive Pinion Bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
Install the following items:

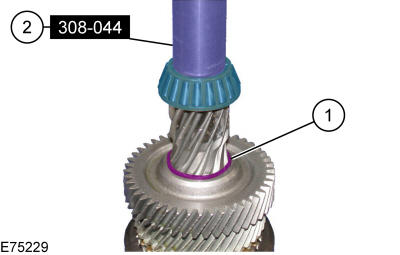

1. NOTE: Make sure that a new component is installed.
2. Use Special Service Tool: 308-044 Installer, Transmission Extension Housing Bushing/Seal.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the components are installed to the position noted before removal.

Courtesy of FORD MOTOR COMPANY

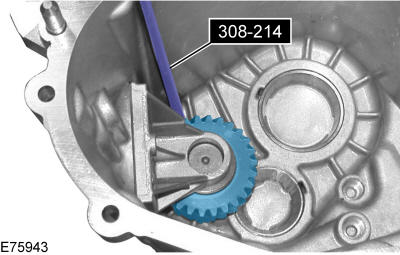

Keep the reverse gear idler shaft bearing block raised while installing the shaft. Use Special Service Tool: 308-214 Remover, Hydraulic Line Spring Clip.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY
Material
: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of FORD MOTOR COMPANY

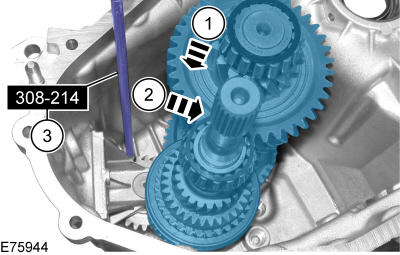

1. Install the input and output shafts together.
2. Move the input and output shafts to one side.
3. Remove Special Service Tool: 308-214 Remover, Hydraulic Line Spring Clip.
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the components are installed to the position noted before removal.

Install the following items:

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Material
  : Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

  Torque

  : 25 lb.ft (34 Nm)
Courtesy of FORD MOTOR COMPANY
Material
: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY
NOTE: The guide pins must remain installed in the gearbox housing.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts in a crisscross sequence.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

Use Special Service Tool: 205-115 Installer, Drive Pinion Seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

Material

: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. NOTE: Make sure that a new component is installed.

  Use Special Service Tool: 205-115 Installer, Drive Pinion Seal.
2. NOTE: Use adhesive tape to cover the input shaft splines to prevent damage to the input shaft seal.

  NOTE: Make sure that a new component is installed.
3. NOTE: Make sure that new components are installed.

  Torque

  : 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the adhesive tape from the input shaft splines.

Courtesy of FORD MOTOR COMPANY
Material
: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY

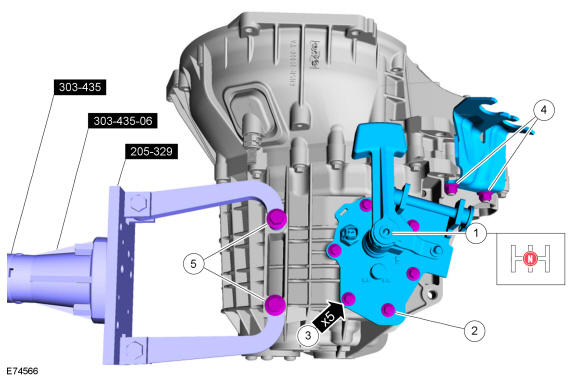

NOTE: Note the different lengths of the bolts.

Torque

: 19 lb.ft (26 Nm)
Torque
: 19 lb.ft (26 Nm)
Torque
: 30 lb.ft (40 Nm)
Remove Special Service Tool: 205-329 Mounting Bracket, Engine/Differential., 303-435-06 Mounting Bracket for 303-435., 303-435 Mounting Stand.

Courtesy of FORD MOTOR COMPANY
