Section 37 (Manual Transmission - 5-Speed Manual Transmission - MTX75): Disassembly: Transmission

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	307-003 (T57L-500-B) Holding Fixture, Transmission
Courtesy of FORD MOTOR COMPANY	308-001 (T58L-101-B) Remover, Pilot Bearing
Hot Air Gun

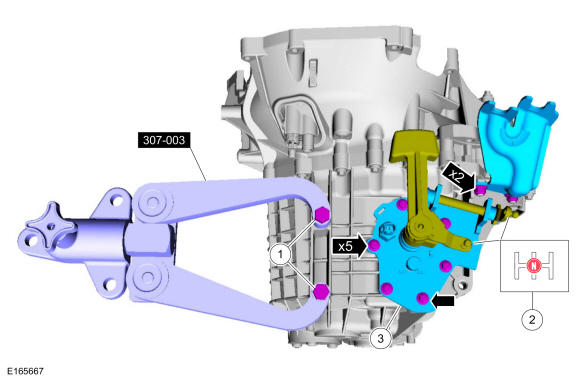

1. Remove the selector mechanism.
   1. Attach the transmission to the special tool. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.
   2. Set the manual shift lever to the neutral (N) position.
   3. NOTE: Note the location of the short and long bolts for reassembly.

      Remove the bolts and the selector mechanism.

   Courtesy of FORD MOTOR COMPANY

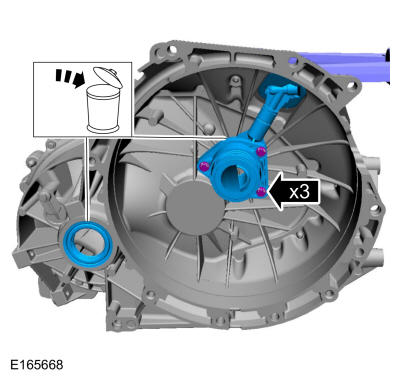

2. Remove the halfshaft seal, the bolts and the clutch slave cylinder.

   Courtesy of FORD MOTOR COMPANY

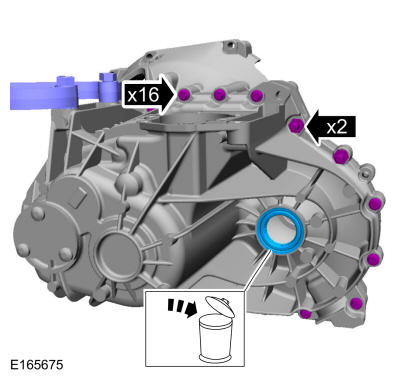

3. Remove the halfshaft seal and the transmission case bolts.

   Courtesy of FORD MOTOR COMPANY

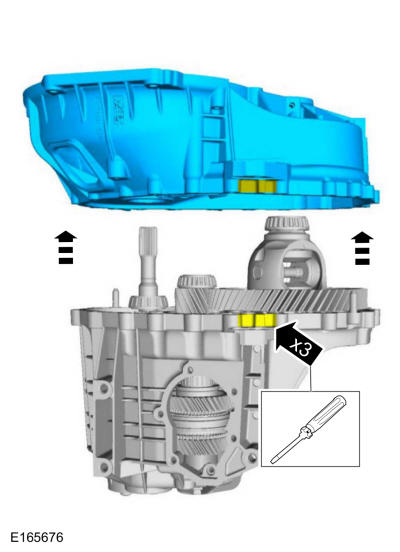

4. NOTE: Remove the clutch housing with the input shaft pointing upward.

   Remove the clutch housing.

   Courtesy of FORD MOTOR COMPANY

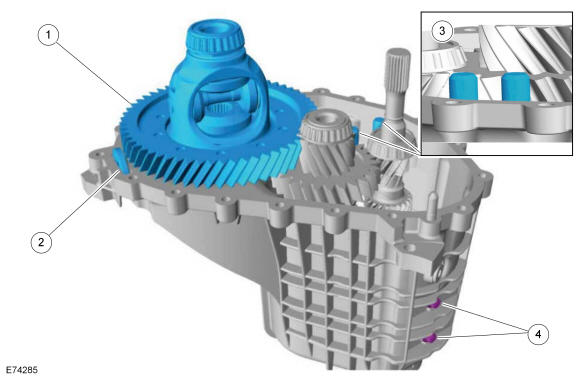

5. Remove the differential assembly.
   1. Remove the differential assembly.
   2. Remove the magnet.
   3. Remove the shift rails.
   4. Remove the reverse idle gear bolts.

   Courtesy of FORD MOTOR COMPANY

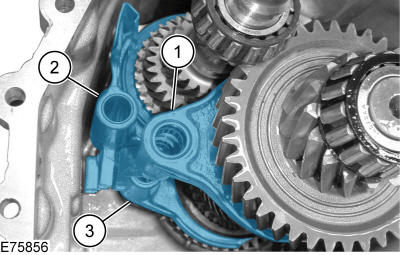

6. NOTE: Marking the components makes installation easier.

   Remove the shift forks.

   1. Remove the 1st/2nd shift fork.
   2. Remove the 3rd/4th shift fork.
   3. Remove the 5th/reverse shift fork.

   Courtesy of FORD MOTOR COMPANY

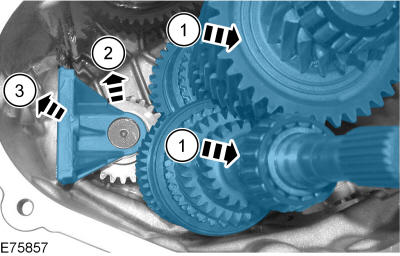

7. Remove the reverse idler gear retainer.
   • Lift the input shaft and output shaft out of the case.
   • Pull the reverse idler gear retainer up.
   • Remove the reverse idler gear retainer.

   Courtesy of FORD MOTOR COMPANY

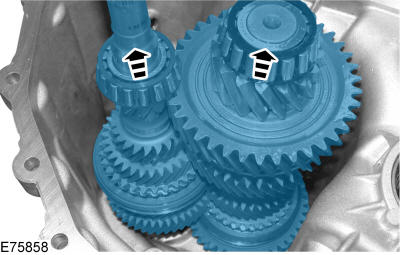

8. Remove the input shaft and the output shaft.

   Courtesy of FORD MOTOR COMPANY

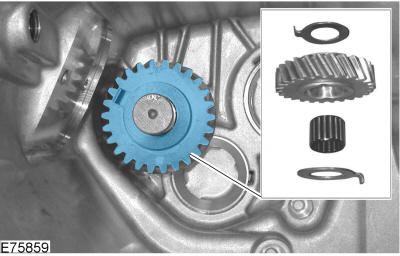

9. NOTE: Marking the components makes installation easier.

   Remove the reverse idler gear.

   Courtesy of FORD MOTOR COMPANY

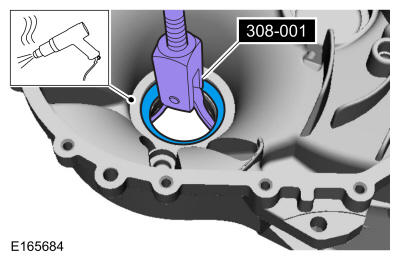

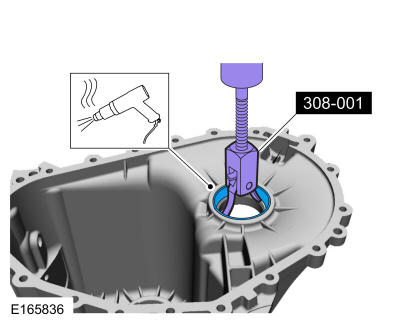

10. Remove the bearing race from the clutch housing. Use Special Service Tool: 308-001 (T58L-101-B) Remover, Pilot Bearing. Use the General Equipment: Hot Air Gun

    Courtesy of FORD MOTOR COMPANY

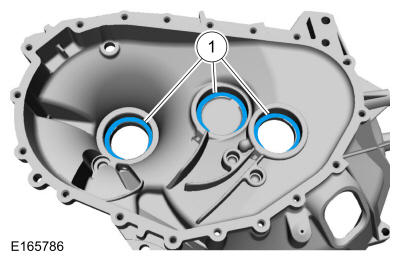

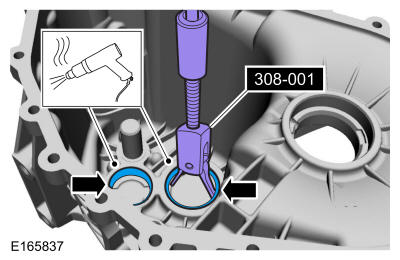

11. Remove the input shaft and output shaft bearing races. Use Special Service Tool: 308-001 (T58L-101-B) Remover, Pilot Bearing. Use the General Equipment: Hot Air Gun

    Courtesy of FORD MOTOR COMPANY

12. 1. NOTE: Marking the components makes installation easier.

       Remove the selective shims.

    Courtesy of FORD MOTOR COMPANY

13. Remove the bearing race from the transmission housing. Use Special Service Tool: 308-001 (T58L-101-B) Remover, Pilot Bearing. Use the General Equipment: Hot Air Gun

    Courtesy of FORD MOTOR COMPANY

14. NOTE: Marking the components makes installation easier.

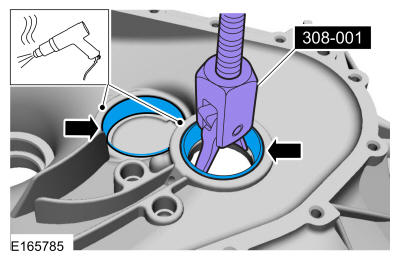

    Remove the bearing races. Use Special Service Tool: 308-001 (T58L-101-B) Remover, Pilot Bearing. Use the General Equipment: Hot Air Gun

    Courtesy of FORD MOTOR COMPANY

15. The following two steps should only be performed if the reverse gear idler shaft is damaged.

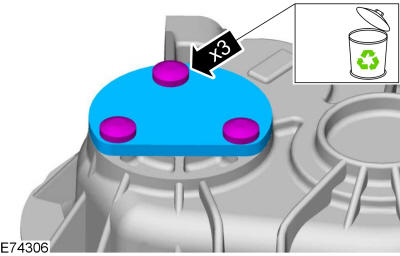

16. Remove the bolts.

    Courtesy of FORD MOTOR COMPANY

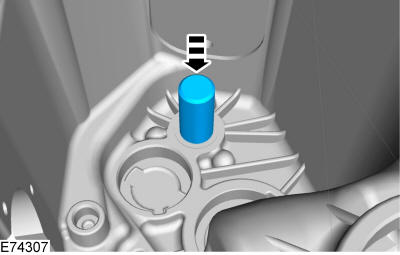

17. Push the reverse gear idler shaft out and remove the reverse gear idler shaft.

Courtesy of FORD MOTOR COMPANY
