Input Shaft: Disassembly

WARNING: This page is about a different variant/trim than selected.

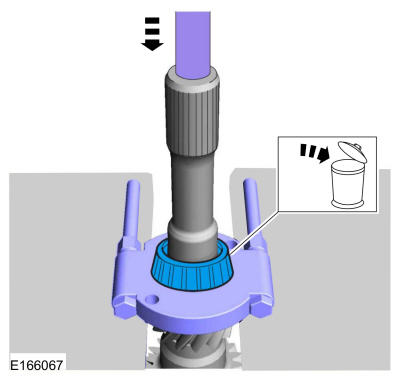

Using the bearing separator and a hydraulic press, remove and discard the bearing. Use the General Equipment: Hydraulic Press Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY

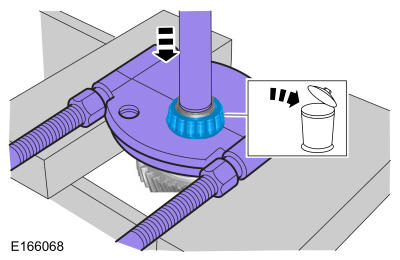

Using the bearing separator and a hydraulic press, remove and discard the bearing. Use the General Equipment: Hydraulic Press Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY

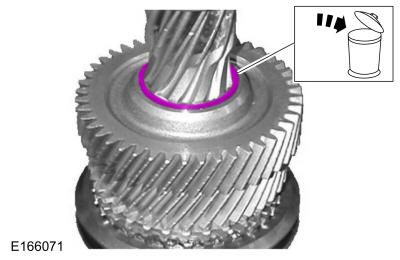

Remove and discard the snap ring.

Courtesy of FORD MOTOR COMPANY
Using the bearing separator and a hydraulic press, Remove the 5th gear. Use the General Equipment: Hydraulic Press Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY

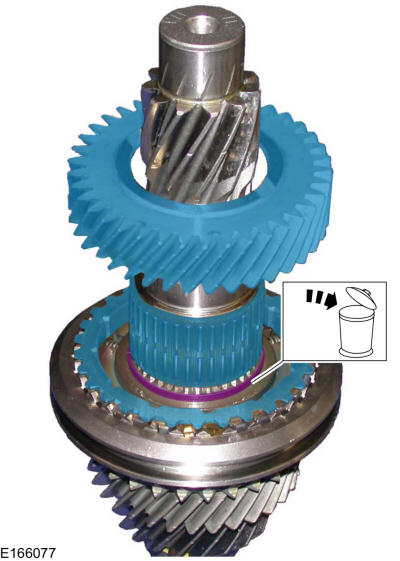

Remove the 4th gear, the needle bearing and the 4th gear synchronizer ring. Remove and discard the snap ring.

Courtesy of FORD MOTOR COMPANY
Remove the 3rd/4th gear synchronizer assembly, 3rd gear and the needle bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: The detent balls are spring-loaded. Take care when removing the selector ring from the synchronizer hub.

NOTE: Mark the installed position of the selector ring.

Disassemble the following items:
1. Selector ring
2. Synchronizer body
3. Compression springs
4. Blocker bars
5. Detent balls

Courtesy of FORD MOTOR COMPANY
