Input Shaft: Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not lubricate new roller bearings.

Lubricate all other transmission components with transmission fluid during reassembly.

Material

: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)
NOTE: Observe the markings on the selector ring.

Assemble the following items:
1. Compression springs
2. Blocker bars and detent balls
3. Selector ring
Courtesy of FORD MOTOR COMPANY

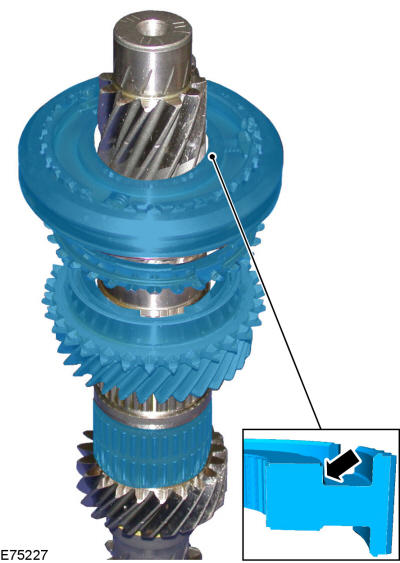

Install the needle bearing, the 3rd gear, and the 3rd/4th gear synchronizer assembly.

Courtesy of FORD MOTOR COMPANY

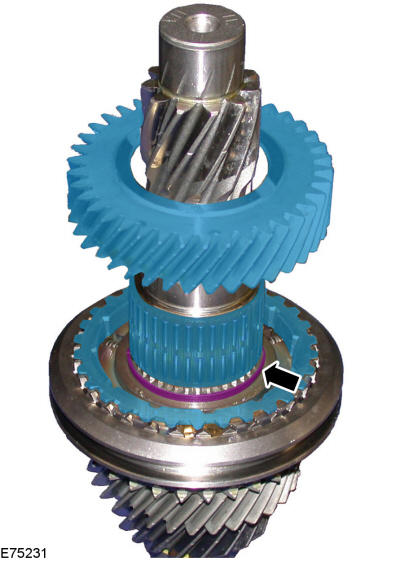

Install a new snap ring. Install the synchronizer ring, the needle bearing and the 4th gear.

Courtesy of FORD MOTOR COMPANY

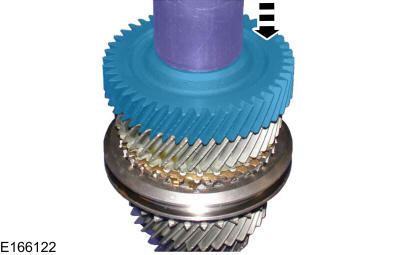

NOTE: Use a tube to press the gear on.

Install the 5th gear. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY

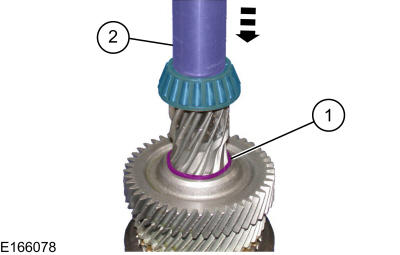

Install the following items:
1. Install a new snap ring.
2. NOTE: Using a tube, press the bearing on by the inner race only.

  NOTE: The roller bearing must not be lubricated.

  Install a new bearing. Use the General Equipment: Hydraulic Press
Courtesy of FORD MOTOR COMPANY
NOTE: Using a tube, press the bearing on by the inner race only.

NOTE: The roller bearing must not be lubricated.

Install a new bearing. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
