Disassembly And Assembly Of Subassemblies: Differential: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Use vise jaw protectors.

Clamp the differential in a vise. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors

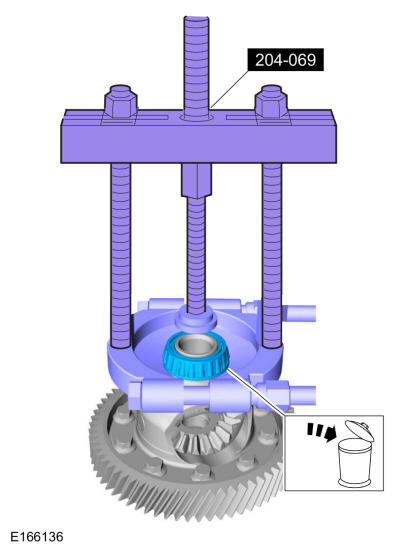

Remove and discard the bearing. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub. Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY

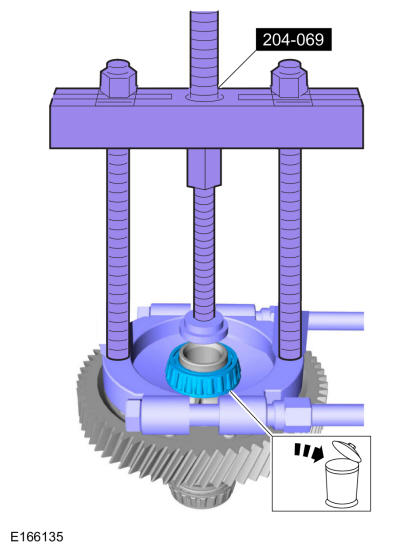

Remove and discard the bearing. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub. Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. Loosen: Four turn(s)
2. Remove and discard the bolts.
3. Save four bolts for reassembly.
Courtesy of FORD MOTOR COMPANY
Lightly tap the 4 bolts to remove the ring gear from the differential.

Courtesy of FORD MOTOR COMPANY
