Reverse gear idler

WARNING: This page is about a different variant/trim than selected.

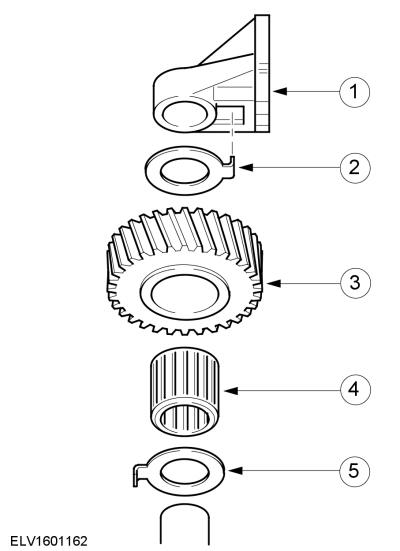

GFD268533Courtesy of FORD MOTOR COMPANY
Item Description
1 Mounting
2 Thrust washer
3 Reverse gear idler
4 Needle roller bearing
5 Thrust washer
