Output Shaft
WARNING: This page is about a different variant/trim than selected.

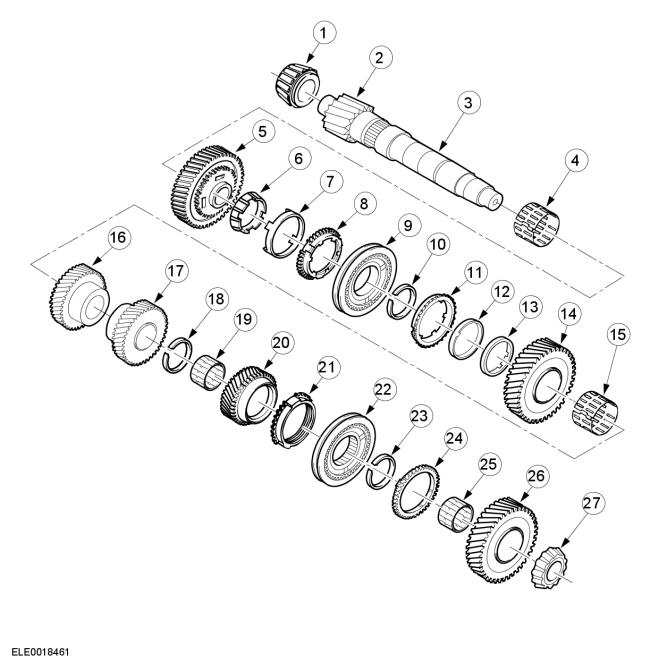

| Item | Description |
|---|---|
| 1 | Tapered roller bearing (clutch side) |
| 2 | Teeth - output shaft |
| 3 | Output shaft |
| 4 | Needle roller bearing - 1st gear |
| 5 | Gear wheel - 1st gear |
| 6 | Inner synchronizer ring - 1st gear |
| 7 | Synchronizer cone - 1st gear |
| 8 | Outer synchronizer ring - 1st gear |
| 9 | 1st/2nd gear synchronizer assembly |
| 10 | Snap ring |
| 11 | Outer synchronizer ring - 2nd gear |
| 12 | Synchronizer cone - 2nd gear |
| 13 | Inner synchronizer ring - 2nd gear |
| 14 | Gear wheel - 2nd gear |
| 15 | Needle roller bearing - 2nd gear |
| 16 | Gear wheel - 3rd gear |
| 17 | Gear wheel - 4th gear |
| 18 | Snap ring |
| 19 | Needle roller bearing - 5th gear |
| 20 | Gear wheel - 5th gear |
| 21 | Synchronizer ring - 5th gear |
| 22 | 5th/reverse gear synchronizer assembly |
| 23 | Snap ring |
| 24 | Reverse gear synchronizer ring |
| 25 | Reverse gear needle roller bearing |
| 26 | Gear wheel - reverse gear |
| 27 | Tapered roller bearing (transaxle side) |
The output shaft transfers torque to the ring gear, pinion gears, and differential.
The output shaft has a gear for each drive gear, including reverse. 1st, 2nd, 5th and reverse gears are free to spin around the output shaft. 3rd and 4th gears are free to spin on the input shaft. The synchronizers engage the gears locking them to the output shaft.
The output shaft has two tapered roller bearings. Output shaft end play is controlled by a selective shim located under the bearing cup.
