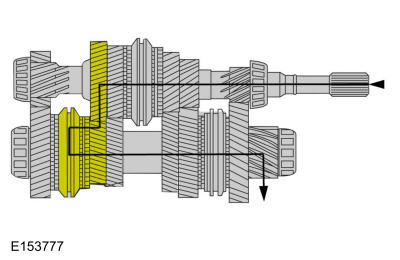

5th Gear
WARNING: This page is about a different variant/trim than selected.
- The input shaft drives the output shaft.
- The 5th gear on the input shaft drives 5th gear on the output shaft.
- The 5th/reverse gear synchronizer is splined to the output shaft.
- When the 5th/reverse gear synchronizer sleeve is shifted forward, 5th gear is locked to the output shaft.
- The output shaft drives the differential ring gear.
- The power flows through the side and pinion gears to the halfshafts.
