Section 37 (Manual Transmission - 5-Speed Manual Transmission - MTX75): Assembly: Transmission

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	205-115 Installer, Drive Pinion Seal TKIT-2000-F/FM/FLM
Courtesy of FORD MOTOR COMPANY	303-350 (T89P-6565-A) Compressor, Valve Spring TKIT-1990-LMH TKIT-1989-F TKIT-1989-FM TKIT-1989-FLM
Courtesy of FORD MOTOR COMPANY	307-003 (T57L-500-B) Holding Fixture, Transmission
Courtesy of FORD MOTOR COMPANY	308-001 (T58L-101-B) Remover, Pilot Bearing
Courtesy of FORD MOTOR COMPANY	308-216 (T94P-4451-AH) Dial Indicator Gauge Holding Fixture TKIT-1994-LMH/MH2 TKIT-1994-FH/FMH/FLMH
Courtesy of FORD MOTOR COMPANY	308-224 (T94P-7025-EH) Socket, Input Shaft TKIT-1994-LMH/MH2 TKIT-1994-FH/FMH/FLMH
Courtesy of FORD MOTOR COMPANY	308-S217 (T94P-4451-BH) Shim Selection Set TKIT-1994-LMH/MH2 TKIT-1994-FH/FMH/FLMH
Plastic Mallet
Hot Air Gun

Materials

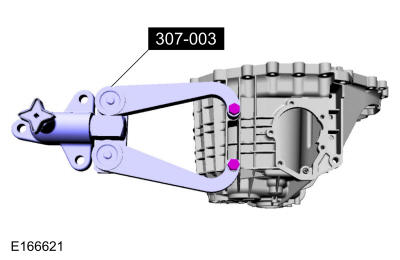

1. Attach the transmission to the special tool. Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.

   Courtesy of FORD MOTOR COMPANY

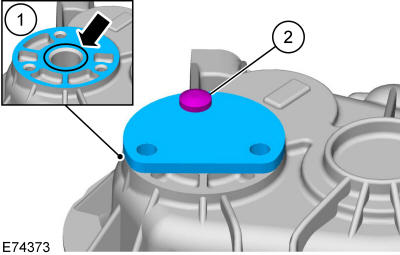

2. 1. Apply sealant and install the reverse gear idler shaft.

      Material

      : Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

   2. Fit the temporary bolt.

   Courtesy of FORD MOTOR COMPANY

3. 1. Remove the temporary bolt.
   2. NOTE: Make sure that new bolts are installed.

      Install the new bolts.

      Torque

      : 18 lb.ft (24 Nm)

   Courtesy of FORD MOTOR COMPANY

4. 1. Heat the transmission case. Use the General Equipment: Hot Air Gun
   2. Insert bearing races manually.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Use a driver to seat the bearing races.

   Install the bearing races. Use the General Equipment: Plastic Mallet

   Courtesy of FORD MOTOR COMPANY

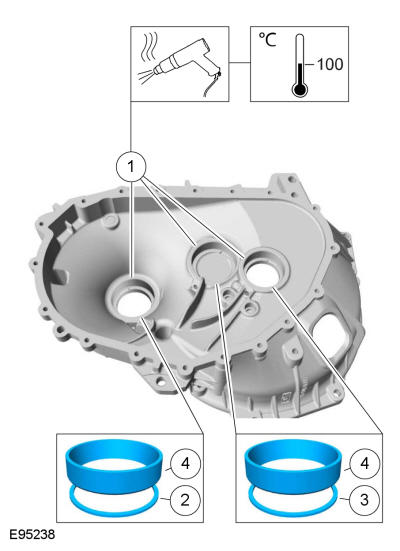

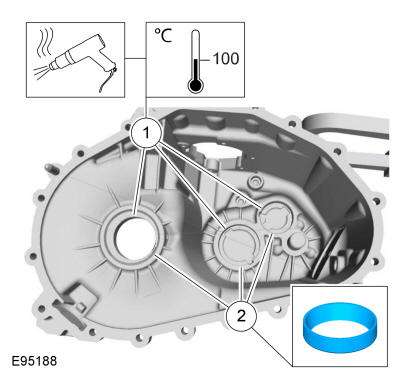

6. 1. Heat the clutch housing. Use the General Equipment: Hot Air Gun
   2. Install a 1.10 mm measuring shim.
   3. Install 1.00 mm measuring shim.
   4. Insert bearing races manually.

   Courtesy of FORD MOTOR COMPANY

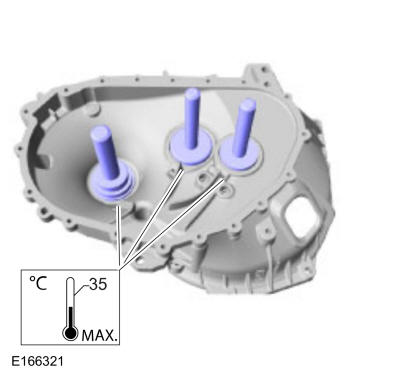

7. NOTE: Use a driver to seat the bearing races.

   Install the bearing races. Use the General Equipment: Plastic Mallet

   Courtesy of FORD MOTOR COMPANY

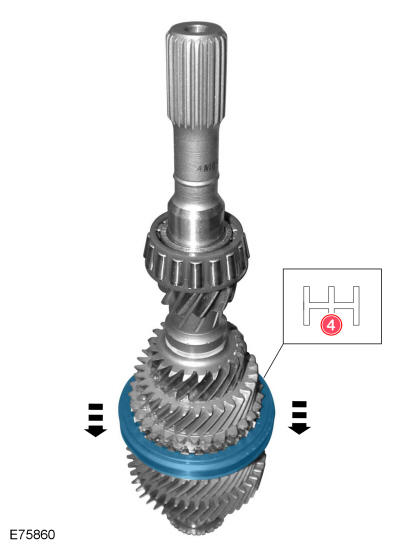

8. Engage 4th gear on the input shaft.

   Courtesy of FORD MOTOR COMPANY

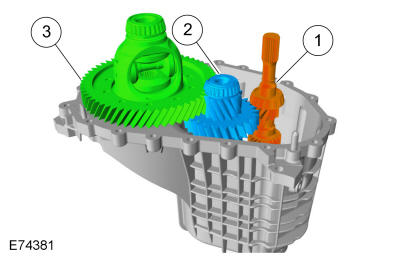

9. NOTE: Do not lubricate new roller bearings.

   Install the following items:

   1. Install the input shaft.
   2. Install the output shaft.
   3. Install the differential assembly.

   Courtesy of FORD MOTOR COMPANY

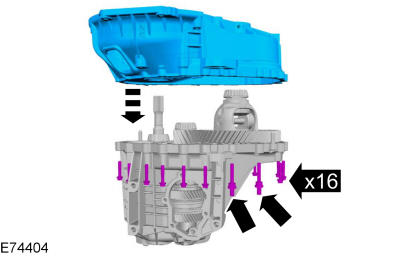

10. NOTE: The guide pins must remain installed in the transmission case.
    NOTE: The mounting faces of the component must be clean and free from foreign bodies and lubricant.

    Install the clutch housing and tighten the bolts in a crisscross sequence.

    Torque

    : 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

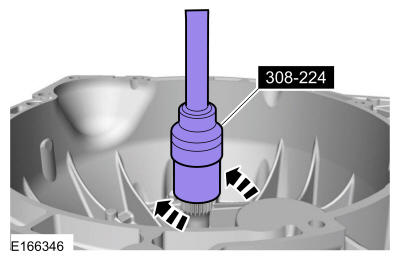

11. Rotate the input shaft to seat the bearings. Use Special Service Tool: 308-224 (T94P-7025-EH) Socket, Input Shaft.

    Courtesy of FORD MOTOR COMPANY

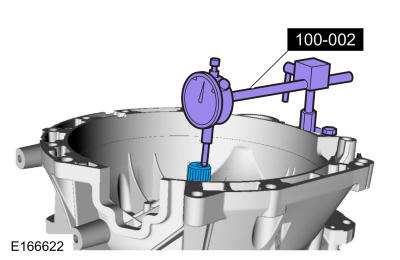

12. NOTE: Make sure the dial indicator is off center on the end of the input shaft.

    Install the dial indicator to measure input shaft end play. Make sure the dial indicator is off center on the end of the input shaft. Zero the dial indicator. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

    Courtesy of FORD MOTOR COMPANY

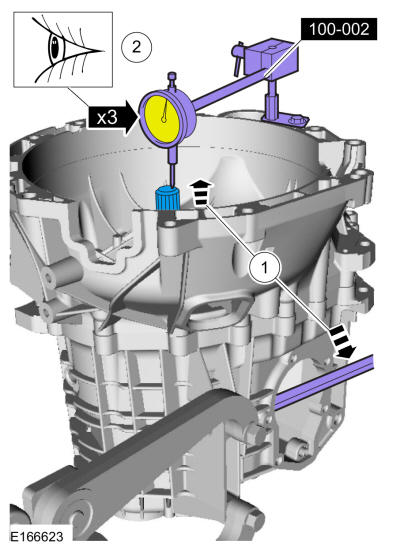

13. NOTE: Measure the end play 3 times and average the measurements. (Example: (0.22 mm + 0.23 mm + 0.21 mm) / 3 = 0.22 mm).
    1. Lift the input shaft with a lever.
    2. Observe and record the dial indicator reading.

    Courtesy of FORD MOTOR COMPANY

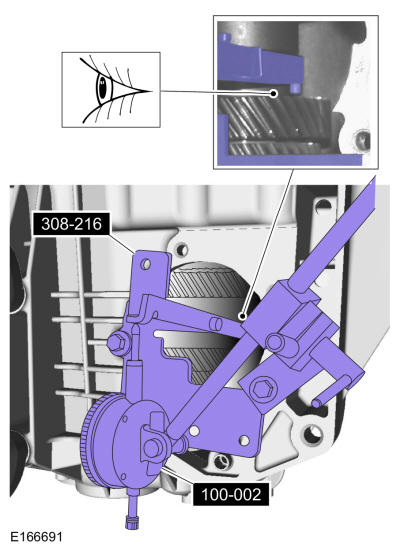

14. Install the special tool on the transmission then install the dial indicator to measure output shaft end play. Position the dial indicator to measure 4th gear. Zero the dial indicator. Use Special Service Tool: 308-216 (T94P-4451-AH) Dial Indicator Gauge Holding Fixture., 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.

    Courtesy of FORD MOTOR COMPANY

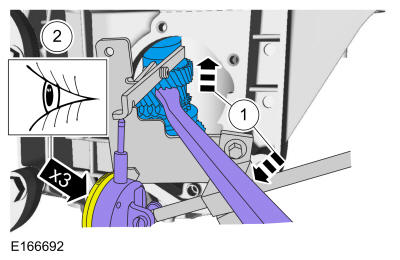

15. NOTE: Measure the end play 3 times and average the measurements. (Example: (0.32 mm + 0.33 mm + 0.31 mm) / 3 = 0.32 mm).
    • Lift the output shaft with a lever.
    • Observe and record the dial indicator reading.

    Courtesy of FORD MOTOR COMPANY

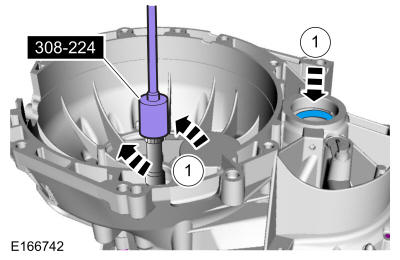

16. 1. Install the special tool and rotate the input shaft while applying pressure on the differential to seat the differential bearings. Use Special Service Tool: 308-224 (T94P-7025-EH) Socket, Input Shaft.

    Courtesy of FORD MOTOR COMPANY

17. Install the special tool on the transmission then install the dial indicator to measure the differential end play.
18. NOTE: Measure the end play 3 times and average the measurements. (Example: (0.22 mm + 0.23 mm + 0.21 mm) / 3 = 0.22 mm).
    • Install the special tool on the transmission then install the dial indicator to measure the differential end play. Lift the differential with the special tool. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge., 308-S217 (T94P-4451-BH) Shim Selection Set., 303-350 (T89P-6565-A) Compressor, Valve Spring.
    • Observe and record the dial indicator reading.

    Courtesy of FORD MOTOR COMPANY

19. • Calculate the required adjusting shim thickness for the input shaft:
    • Installed measuring shim thickness: 1.00 mm.
    • Calculated average input shaft end float e. g. 0.22 mm.
    • End float constant: -0.07 mm.
    • Shim thickness required: 1.00 mm +0.22 mm -0.07 mm = 1.15 mm

20. • Calculate the required adjusting shim thickness for the output shaft:
    • Installed measurement shim thickness: 1.00 mm.
    • Calculated average output shaft end float, e.g.: 0.32 mm.
    • Pre-load constant 0.13 mm.
    • Shim thickness required: 1.00 mm +0.32 mm +0.13 mm = 1.45 mm.

21. • Calculate the required adjusting shim thickness for the differential:
    • Installed measurement shim thickness: 1.10 mm.
    • Calculated average differential end float e. g. 0.36 mm.
    • Pre-load constant 0.33 mm.
    • Shim thickness required: 1.10 mm + 0.36 mm +0.33 mm = 1.79 mm.

22. Remove the clutch housing.

    Courtesy of FORD MOTOR COMPANY

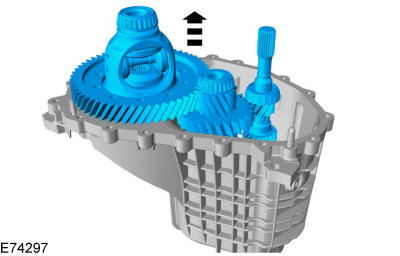

23. Remove the input shaft, output shaft and the differential.

    Courtesy of FORD MOTOR COMPANY

24. Remove the bearing race. Use Special Service Tool: 308-001 (T58L-101-B) Remover, Pilot Bearing. Use the General Equipment: Hot Air Gun

    Courtesy of FORD MOTOR COMPANY

25. Remove the bearing races. Use Special Service Tool: 308-001 (T58L-101-B) Remover, Pilot Bearing. Use the General Equipment: Hot Air Gun

    Courtesy of FORD MOTOR COMPANY

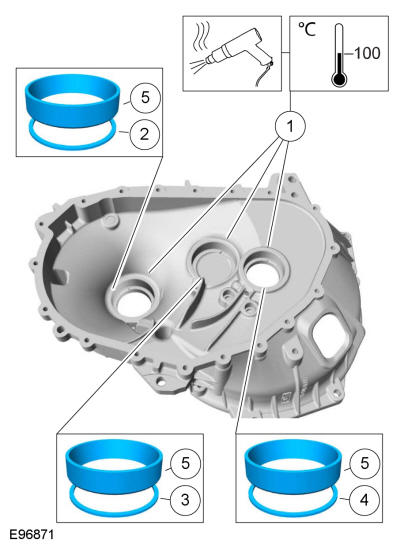

26. 1. Use the General Equipment: Hot Air Gun
    2. Install the measured adjusting shim.
    3. Install the measured adjusting shim.
    4. Install the measured adjusting shim.
    5. Insert bearing races manually.

    Courtesy of FORD MOTOR COMPANY

27. NOTE: Use a driver to seat the bearing races.

    Install the bearing races. Use the General Equipment: Plastic Mallet

    Courtesy of FORD MOTOR COMPANY

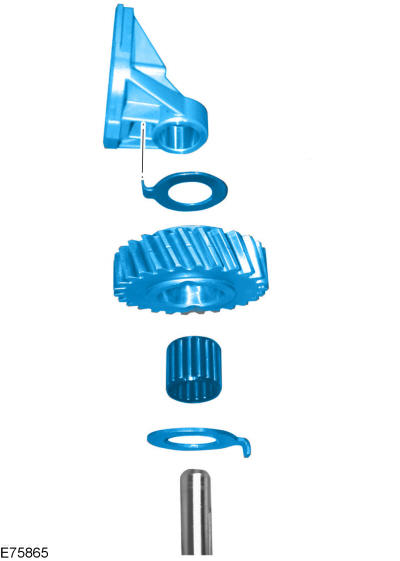

28. NOTE: Make sure that these components are installed to the noted removal position.

    Assemble the reverse gear idler.

    Courtesy of FORD MOTOR COMPANY

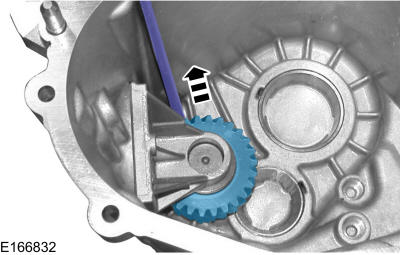

29. Keep the reverse gear idler shaft bearing block raised while installing the shaft.

    Courtesy of FORD MOTOR COMPANY

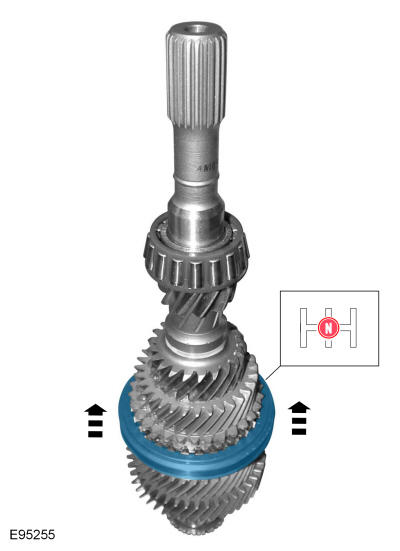

30. Position the synchronizer in N.

    Courtesy of FORD MOTOR COMPANY

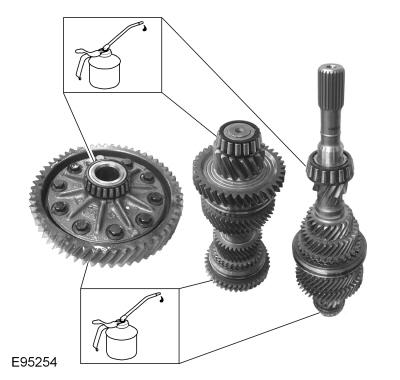

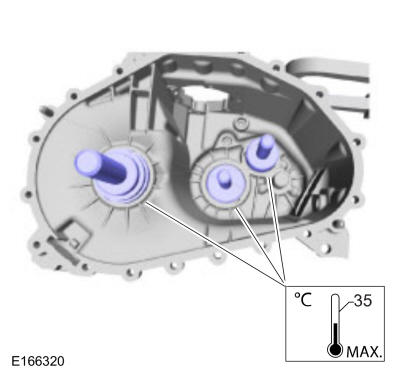

31. Lubricate the input shaft, the output shaft and the differential.

    Material

    : Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

    Courtesy of FORD MOTOR COMPANY

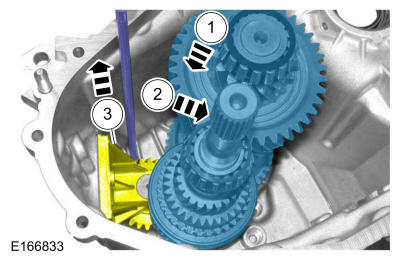

32. 1. Install the output shaft in the transmission case.
    2. Install the input shaft in the transmission case.
    3. Lift the reverse idler gear retainer and install the input and output shafts in the bearing races.

    Courtesy of FORD MOTOR COMPANY

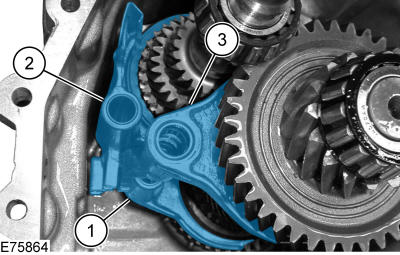

33. NOTE: Make sure that these components are installed to the noted removal position.

    Install the following items:

    1. Install the 5th/reverse shift fork.
    2. Install the 3rd/4th shift fork
    3. Install the 1st/2nd shift fork.

    Courtesy of FORD MOTOR COMPANY

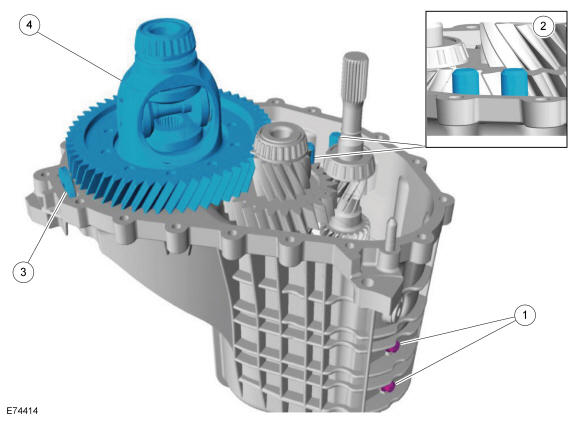

34. Install the following items:

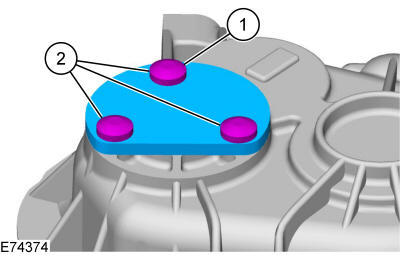

    1. Install the reverse idler gear retainers.

       Material

       : Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

       Torque

       : 25 lb.ft (34 Nm)

    2. Install the shift rails.
    3. Install the magnet.
    4. Install the differential assembly.

    Courtesy of FORD MOTOR COMPANY

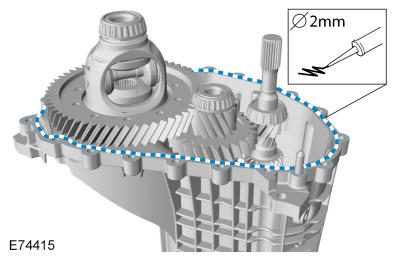

35. Apply the sealant.

    Material

    : Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

    Courtesy of FORD MOTOR COMPANY

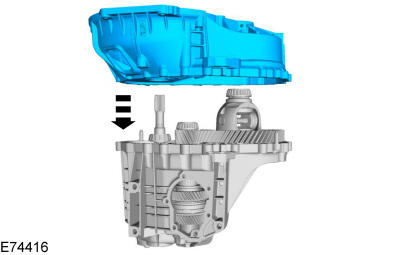

36. NOTE: The guide pins must remain installed in the transmission case.

    Install the clutch housing.

    Courtesy of FORD MOTOR COMPANY

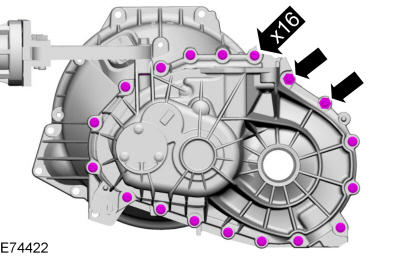

37. Tighten the bolts in a crisscross sequence.

    Torque

    : 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

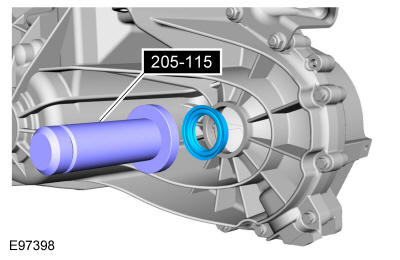

38. Install the halfshaft seal. Use Special Service Tool: 205-115 Installer, Drive Pinion Seal.

    Courtesy of FORD MOTOR COMPANY

39. NOTE: Make sure that a new component is installed.

    Apply the sealant.

    Material

    : Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

    Courtesy of FORD MOTOR COMPANY

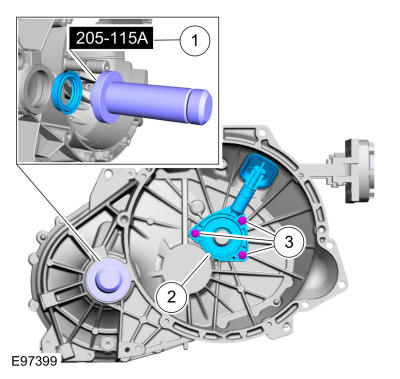

40. Install the following items:
    1. Install the halfshaft seal.
    2. NOTE: Cover the input shaft splines with adhesive tape to avoid damaging the input shaft oil seal.
       NOTE: Make sure that a new component is installed.

       Install the clutch slave cylinder.

    3. NOTE: Make sure that new bolts are installed.

       Tighten the bolts.

       Torque

       : 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

41. Remove the adhesive tape from the input shaft splines.

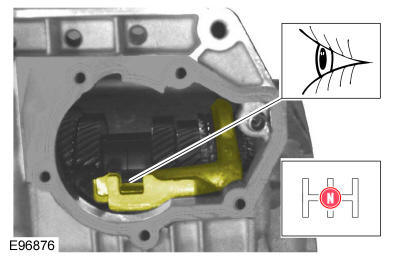

42. Position the shift forks in neutral.

    Courtesy of FORD MOTOR COMPANY

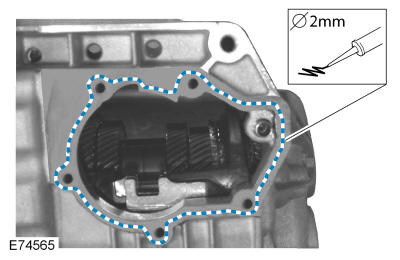

43. Apply the sealant.

    Material

    : Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

    Courtesy of FORD MOTOR COMPANY

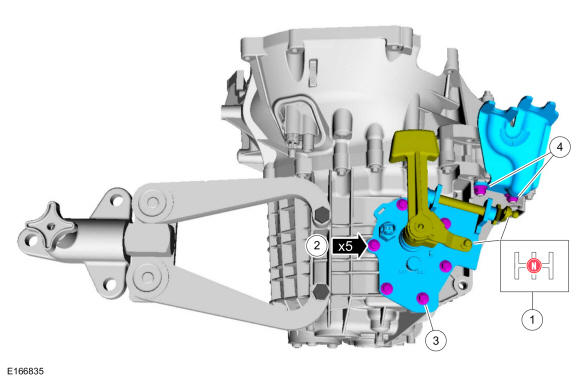

44. 1. Set the selector mechanism to the N position.
    2. Install the selector mechanism and tighten the bolts.

       Torque

       : 19 lb.ft (26 Nm)

    3. Tighten the shown bolt.

       Torque

       : 19 lb.ft (26 Nm)

    4. Install the bracket and tighten the nuts.

       Torque

       : 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
