Clutch System Bleeding - 6-Speed Manual Transmission - B6

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Fluid Suction Gun

Materials

Name	Specification
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20	WSS-M6C65-A2

Bleeding

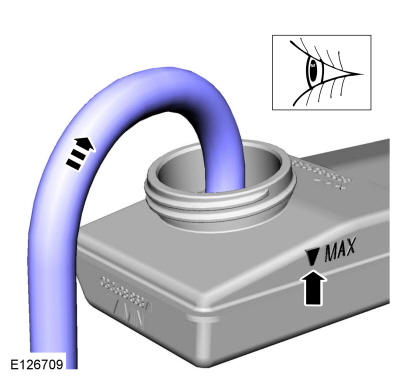

NOTE: Make sure that fluid level is to the MAX mark.

Fill the reservoir.

Material

: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)

Courtesy of FORD MOTOR COMPANY

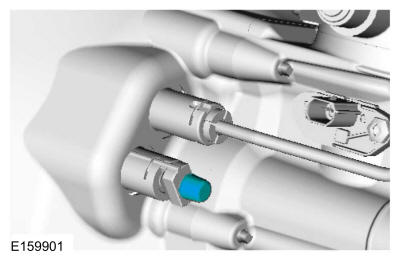

Remove the bleeder cap.

Courtesy of FORD MOTOR COMPANY

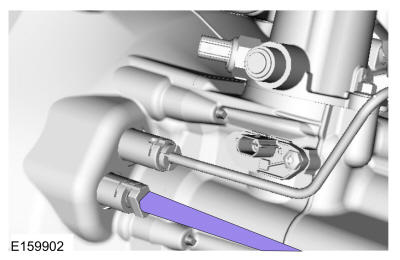

Install the following items:
- Install a fluid suction gun hose. Use the General Equipment: Fluid Suction Gun
  Material

  : Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)
Courtesy of FORD MOTOR COMPANY

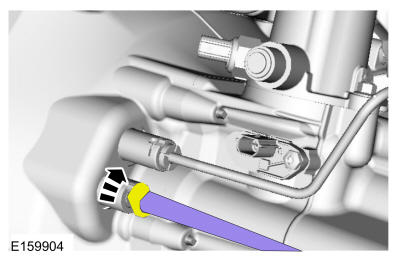

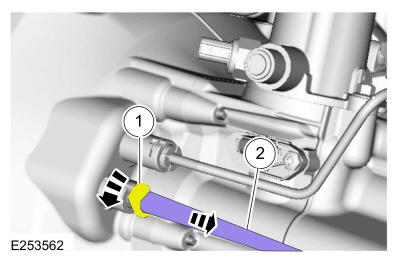

1. Open the clutch bleeder.
2. NOTE: Do not let the fluid go below the MIN mark on the reservoir.

  Vacuum brake fluid through the hydraulic system using the fluid suction gun. Use the General Equipment: Fluid Suction Gun
Courtesy of FORD MOTOR COMPANY
Close the clutch bleeder.

Courtesy of FORD MOTOR COMPANY
Install the clutch bleeder cap.

Courtesy of FORD MOTOR COMPANY
Pump the clutch pedal 5 times, using the full clutch pedal travel to remove any trapped air from the hydraulic system.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that fluid level is to the MAX mark.

Fill the reservoir.

Material

: Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)

Courtesy of FORD MOTOR COMPANY
Start the engine and check the operation of the clutch. If reverse gear engagement is excessively noisy, operate the clutch pedal 5 times, using the full clutch pedal travel.

Courtesy of FORD MOTOR COMPANY
After waiting approx. 30sec., check the operation of the clutch again. If reverse gear engagement is still excessively noisy, repeat the bleeding procedure.
