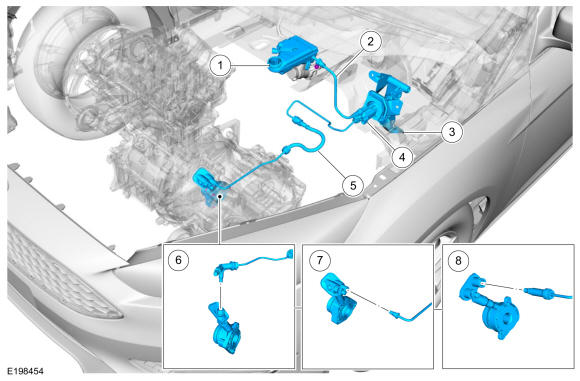

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Brake and clutch master cylinder reservoir |
| 2 |
Clutch master cylinder supply tube |
| 3 |
Clutch pedal |
| 4 |
Master cylinder |
| 5 |
Slave cylinder hydraulic tube |
| 6 |
Clutch slave cylinder (MMT6 transmission) |
| 7 |
Clutch slave cylinder (MTX75 transmission) |
| 8 |
Clutch slave cylinder (B6 transmission) |
