Clutch - System Operation and Component Description: Notes
WARNING: This page is about a different variant/trim than selected.
System Diagram

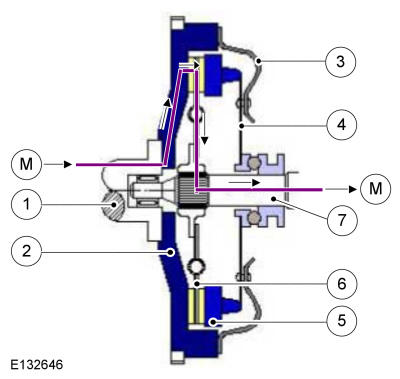

Torque path in a single-disc dry clutch
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| M |
Torque Path |
| 1 |
Crankshaft Dimensions |
| 2 |
Flywheel |
| 3 |
Clutch cover |
| 4 |
Diaphragm spring |
| 5 |
Pressing ring |
| 6 |
Clutch disc with friction linings |
| 7 |
Transmission input shaft |
System Operation
